Notes:
•IfyouremovetheTMMPremium,theiKVMfunctionforserverremotemanagementwillbeunavailable.
•UseanydocumentationthatcomeswiththeTMMPremiumandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
ToremovetheTMMPremium,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage85.
3.Laytheserveronitssideforeasieroperation.
4.LocatetheTMMPremiumonthesystemboard,andthenlifttheTMMPremiumstraightuptoremove
itfromtheconnector.

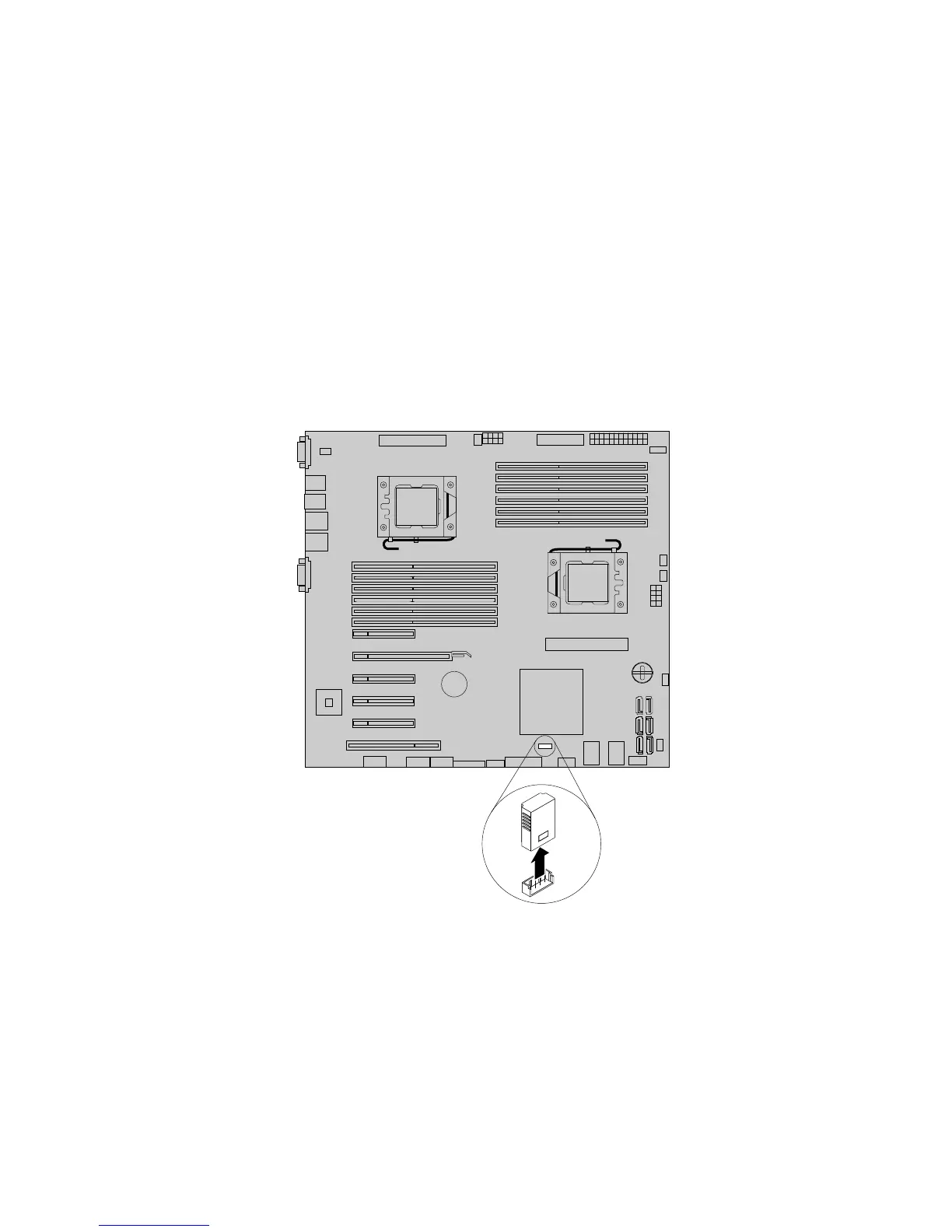

Figure59.RemovingtheTMMPremium
5.IfyouareinstructedtoreturntheoldTMMPremium,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage200
.
