•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
ToremovetheTPM,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage85.
3.Laytheserveronitssideforeasieroperation.
4.LocatetheTPMonthesystemboard,andthenremovetheTPMfromtheTPMconnectorbyliftingit
straightup.
Note:CarefullyhandletheTPMbyitsedges.

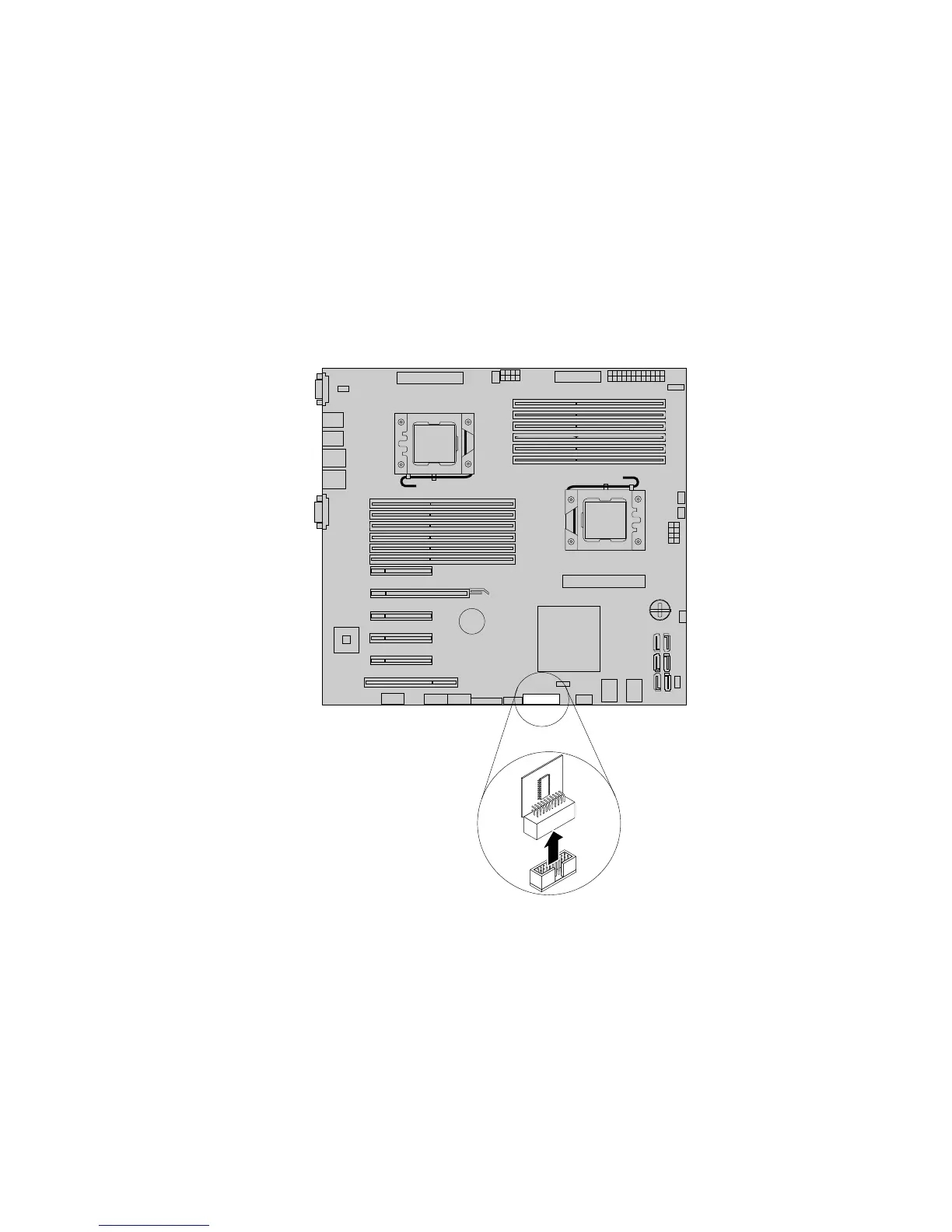

Figure61.RemovingtheTPM
5.IfyouareinstructedtoreturntheoldTPM,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage200
.
Chapter6.Installing,removing,orreplacinghardware121
