6.Slidethenewopticaldriveintothedrivebayfromthefrontuntilitsnapsintoposition.
Note:Youdonotneedtoremovethefrontbezelwhenreplacinganopticaldrive.However,ifyouare
addingasecondaryopticaldriveintheupperopticaldrivebay,youneedtoremovethefrontbezel
first,andthengainaccesstotheprotectiveshieldstoremovethem.Thefollowingillustrationshows
onlythesituationinwhichthefrontbezelhasnotbeenremoved.

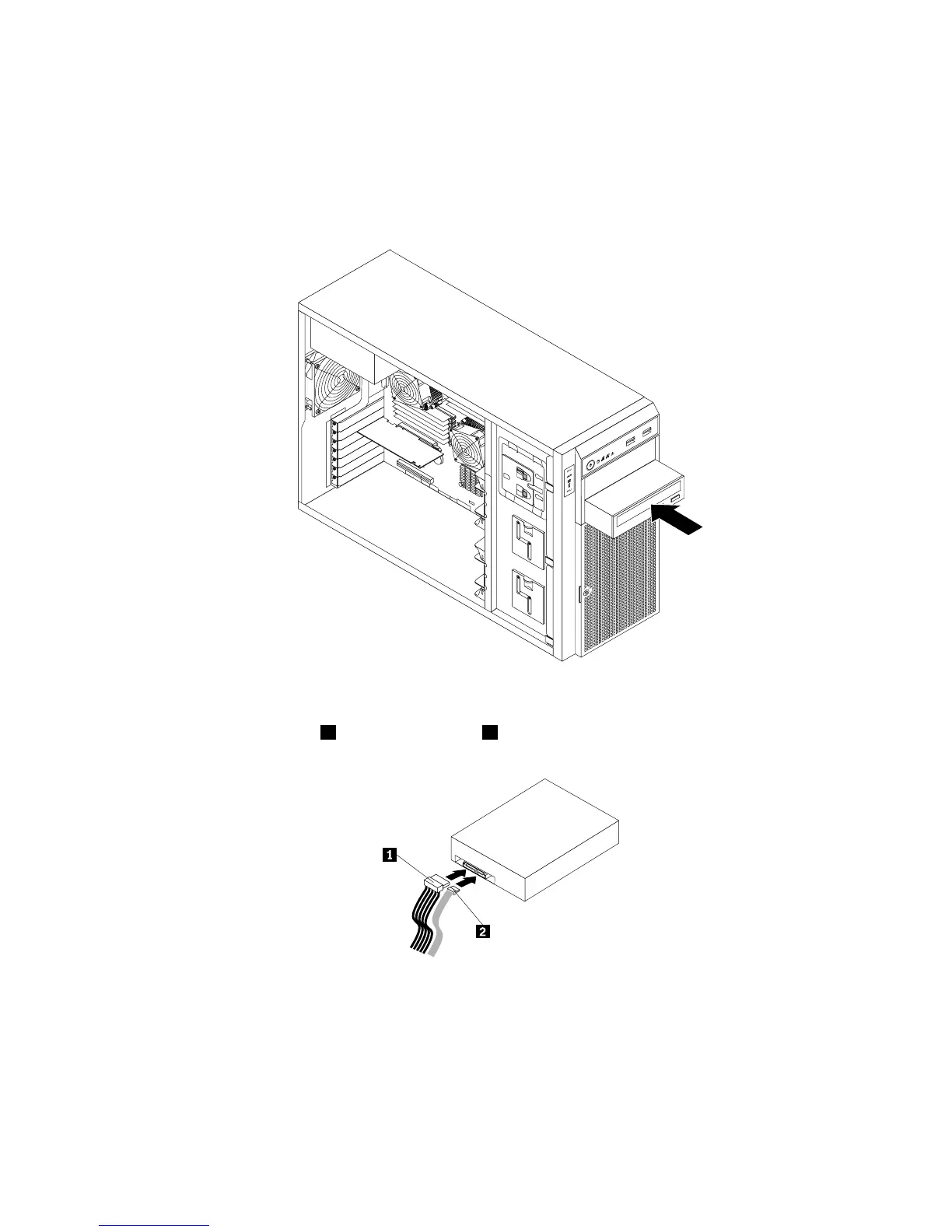

Figure67.Installingtheopticaldrive
7.Connectthepowercable1andthesignalcable2totherearofthenewopticaldrive.
Figure68.Connectingcablestotherearoftheopticaldrive
8.Ifnecessary,connecttheotherendofthesignalcabletotheappropriateSATAconnectoronthesystem
board.See“Systemboardcomponents”onpage48.
9.Reinstallthefrontbezelifyouhaveremovedit.See“Removingandreinstallingthefrontbezel”on
page87
.
10.Dooneofthefollowing:
Chapter6.Installing,removing,orreplacinghardware129
