7.Positionthedriveadapterandthesolid-statedriveintothe3.5-inchdrivebracket.Alignthescrewholes
inthedriveadapterandthesolid-statedrivewiththecorrespondingholesinthebracket.Then,install
thefivescrewstosecurethedriveadapterandthesolid-statedriveintothebracket.

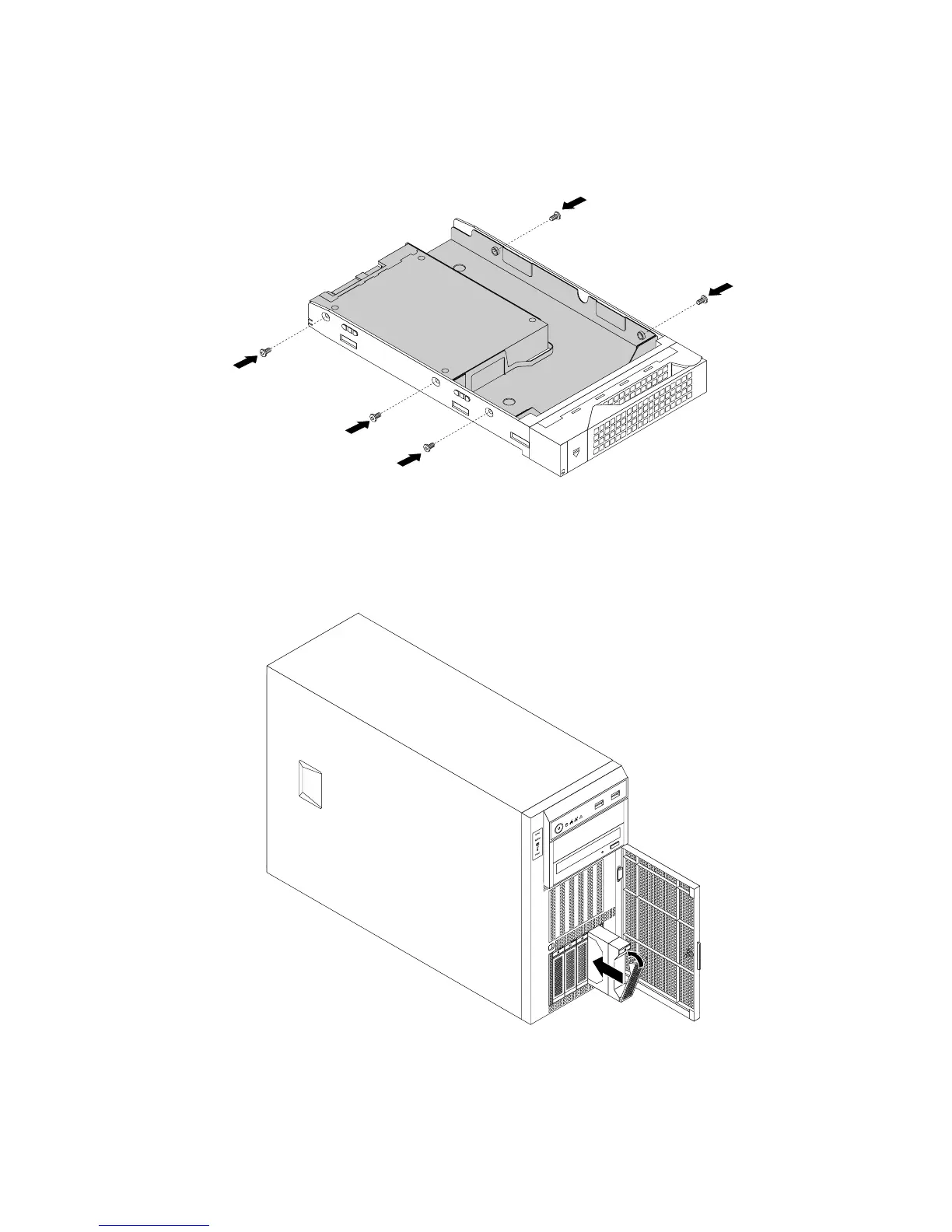

Figure86.Installingthescrewstosecurethedriveadapterandthesolid-statedrivetothebracket
8.Slidethesolid-statedriveintothedrivebayfromthefrontuntilitsnapsintoposition,andthen
completelyclosethehandle.
Figure87.Installingthesolid-statedrive
9.Checkthehard-disk-drivestatusLEDstoensurethatthesolid-statedriveisoperatingcorrectly.You
mighthavetorestarttheserverforthenewlyinstalledsolid-statedrivetoberecognized.See“Hot-swap
148ThinkServerTD340UserGuideandHardwareMaintenanceManual
