Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Ensurethatthenewmicroprocessoristhecorrecttypeyourserversupports.See“Memorymodule
installationrules”onpage93
.Whentwomicroprocessorsareinstalled,bothmusthavethesamecore
voltageandcorespeed.
•Useanydocumentationthatcomeswiththemicroprocessoroptionkitandfollowthoseinstructionsin
additiontotheinstructionsinthistopic.
•Yourmicroprocessor,socket,andsocketcovermightlookslightlydifferentfromtheillustrationsinthis
topic.
Toreplacethemicroprocessor,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage85.
3.Laytheserveronitssideforeasieroperation.
4.Removetheheatsinkandfanassembly.See“Replacingtheheatsinkandfanassembly1”onpage188.
5.Locatethemicroprocessorsocket,pressdownthesmallhandleonthemicroprocessorsocket,and
thenpullthehandlealittlebitoutwardtoreleaseitfromthesecuredposition.Then,gentlypress
themicroprocessorretainertoopenit.Ensurethatthesmallhandleandthemicroprocessorretainer
areinthefullyopenposition.

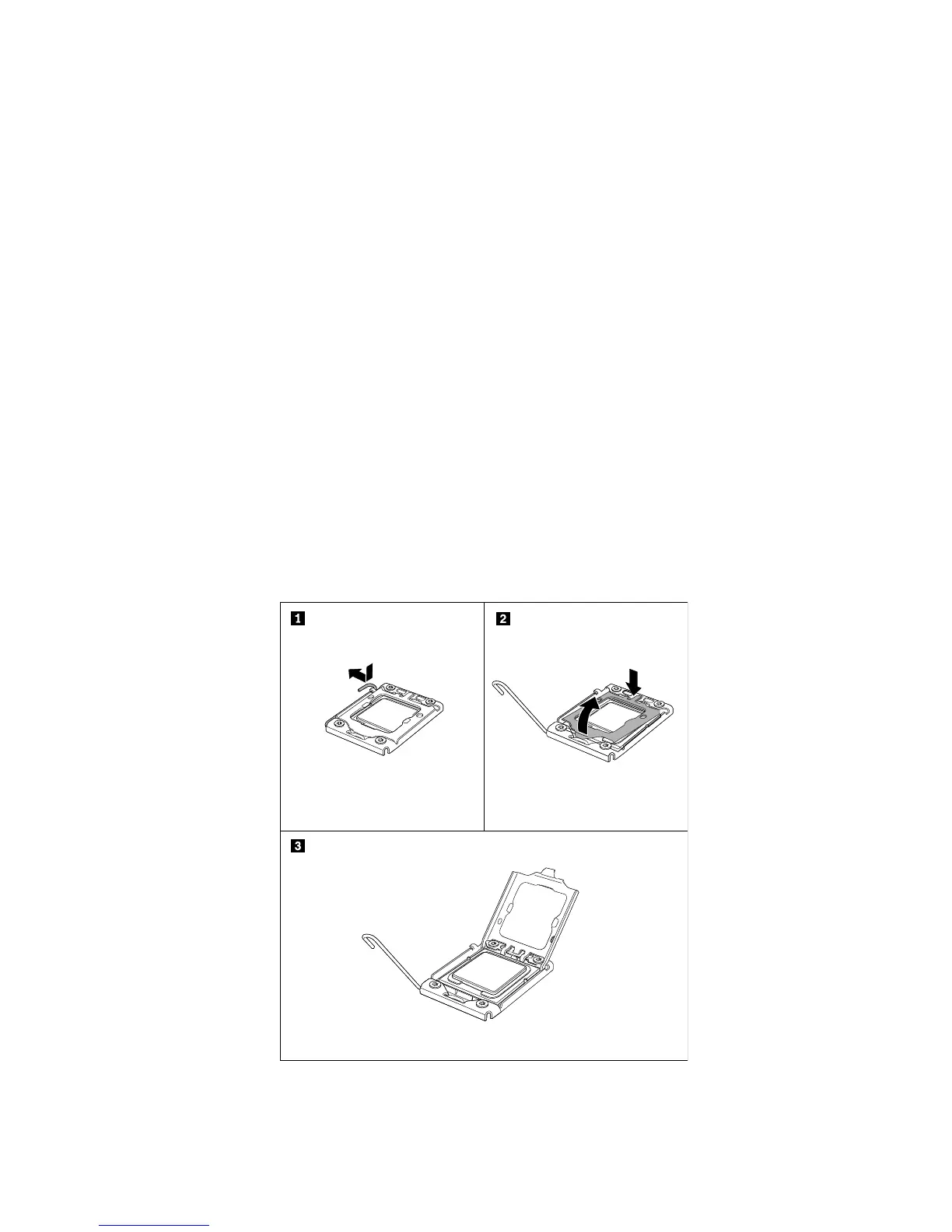

Figure103.Openingthehandleandmicroprocessorretainer
162ThinkServerTD340UserGuideandHardwareMaintenanceManual
