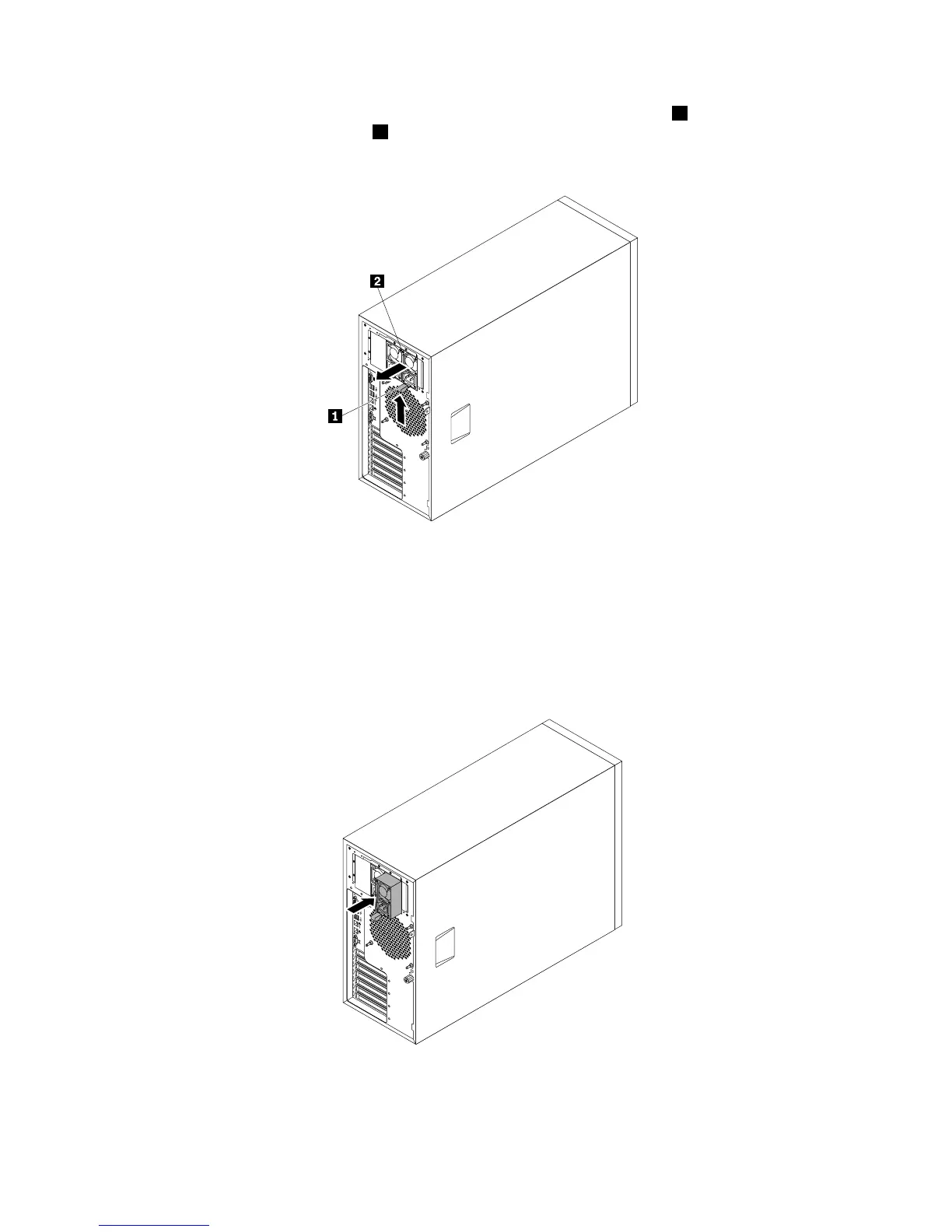

2.Ifyouarereplacingahot-swapredundantpowersupply,pressthereleasetab1inthedirectionas
shownandcarefullypullthehandle
2atthesametimetoslidethefailinghot-swapredundantpower
supplyoutofthechassis.
Figure109.Removingahot-swapredundantpowersupply
3.Touchthestatic-protectivepackagethatcontainsthenewhot-swapredundantpowersupplytoany
unpaintedsurfaceontheoutsideoftheserver.Then,removethenewhot-swapredundantpower
supplyfromthepackage.
4.Notetheorientationofthenewhot-swapredundantpowersupply,andthenslideitintothechassisuntil
itsnapsintoposition.
Figure110.Installingahot-swapredundantpowersupply
168ThinkServerTD340UserGuideandHardwareMaintenanceManual
