14.Gentlylifteachedgeofthesystemboardalittlebitupwardsothatthesystemboardisreleasedfrom
themountingstudsonthechassis.Then,movethesystemboardtothefrontoftheserverandthen
carefullypivotthesystemboardupwardtoremoveitoutofthechassis.
Note:Carefullyhandlethesystemboardbyitsedges.

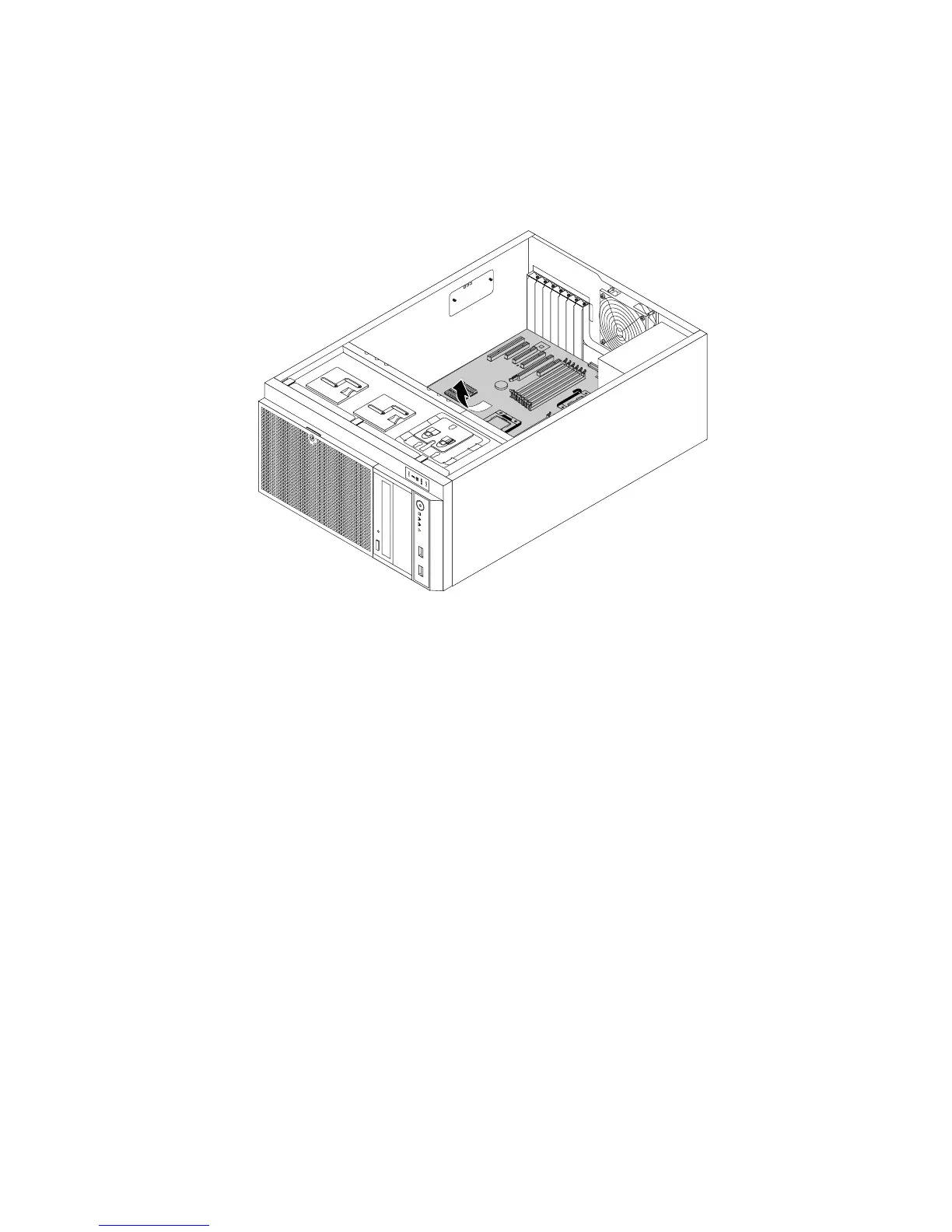

Figure133.Removingthesystemboard
15.Placetheoldsystemboardonaclean,flat,andstatic-protectivesurface.Touchthestatic-protective
packagethatcontainsthenewsystemboardtoanyunpaintedsurfaceontheoutsideoftheserver.
Then,takethenewsystemboardoutofthepackage.
196ThinkServerTD340UserGuideandHardwareMaintenanceManual
