Lenovo ThinkSystem DE Series Hardware Installation And Maintenance Guide

Front view
The following illustration shows the front view of DE4000H (12 drives). Front view of DE2000H (12 drives) or
DE120S is the same.

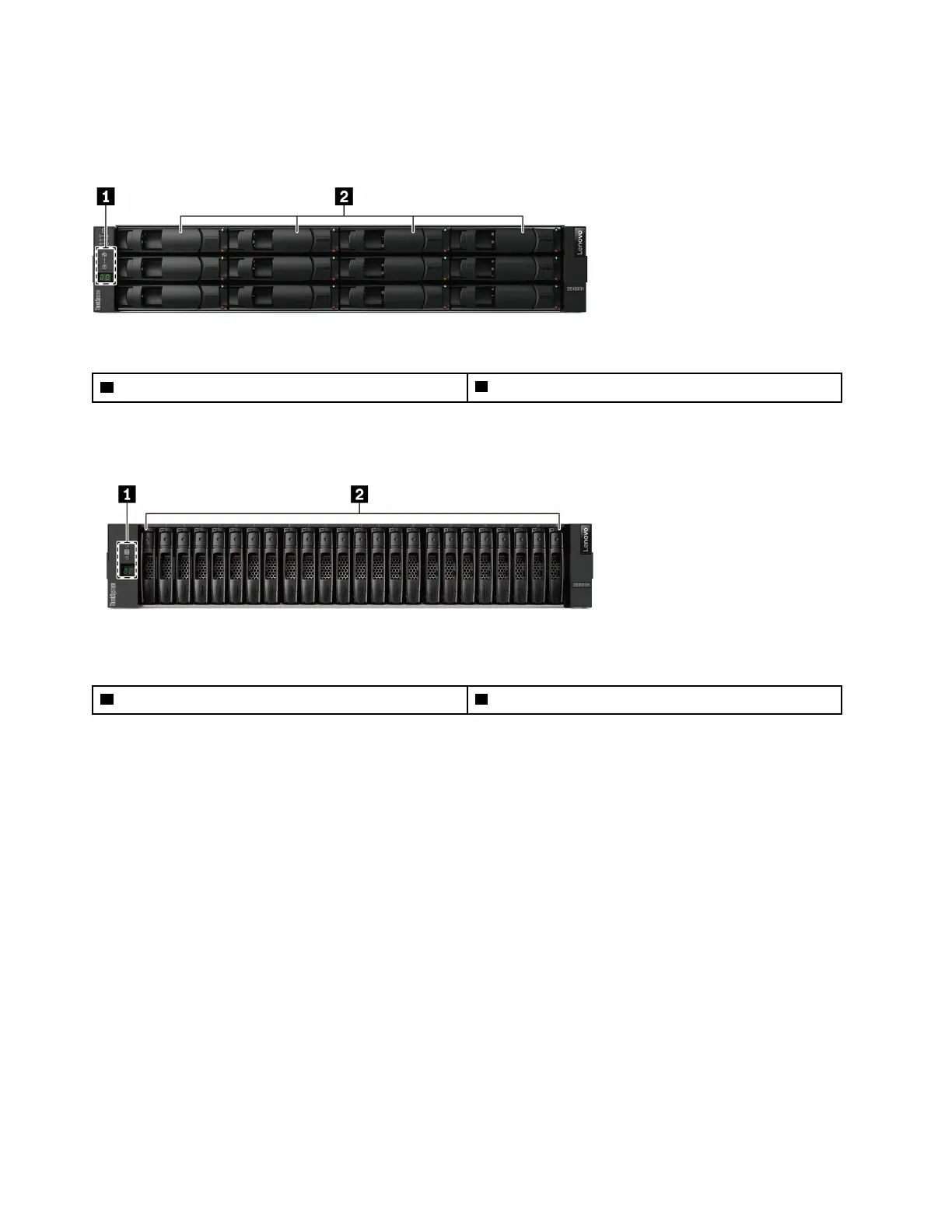

Figure 1. Front view of models with 12 drive bays
1 Operator display panel
2 drive bays
The following illustration shows the front view of DE2000H (24 drives). Front view of DE4000H (24 drives),
DE4000F (24 drives), DE6000H (24 drives), DE6000F (24 drives), or DE240S is the same.
Figure 2. Front view of models with 24 drive bays
1 Operator display panel
2 drive bays
For information about the LEDs on the operator display panel, see “LEDs on the operator display panel” on
page 176.
For information about the LEDs on drives, see “LEDs on the drives” on page 179.
