Lenovo ThinkSystem SR550 - Install the Serial Port Module

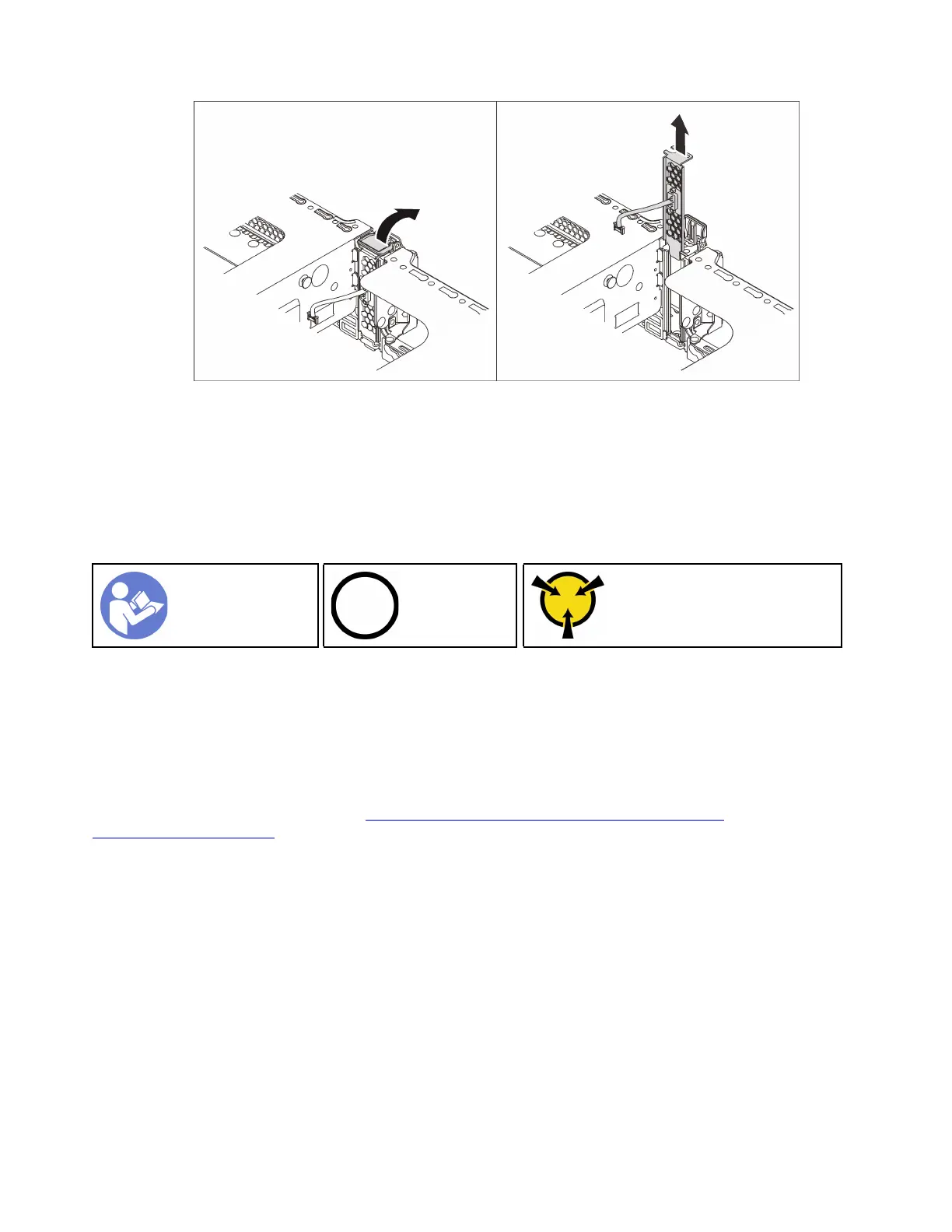

Figure 93. Serial port module removal
If you are instructed to return the old serial port module, follow all packaging instructions and use any
packaging materials that are provided.
Install the serial port module
Use this information to install the serial port module.
“Read the
installation
Guidelines” on
page 53
“Power off
the server
for this task”
on page 13
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 56
Before installing the serial port module, touch the static-protective package that contains the new serial port
module to any unpainted surface on the outside of the server. Then, take the new serial port module out of
the package and place it on a static-protective surface.
To install the serial port module, complete the following steps:
Watch the procedure
A video of this procedure is available at
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
C9jFjZnXQ6AmTXaIdX6_HJ
.
Step 1. If the slot is covered with a slot bracket, open the retention latch and remove the slot bracket from
the chassis. Store the bracket in case that you later remove the serial port module and need the
bracket to cover the place.
Step 2. Install the serial port module into the chassis and close the retention latch to secure it in position.
