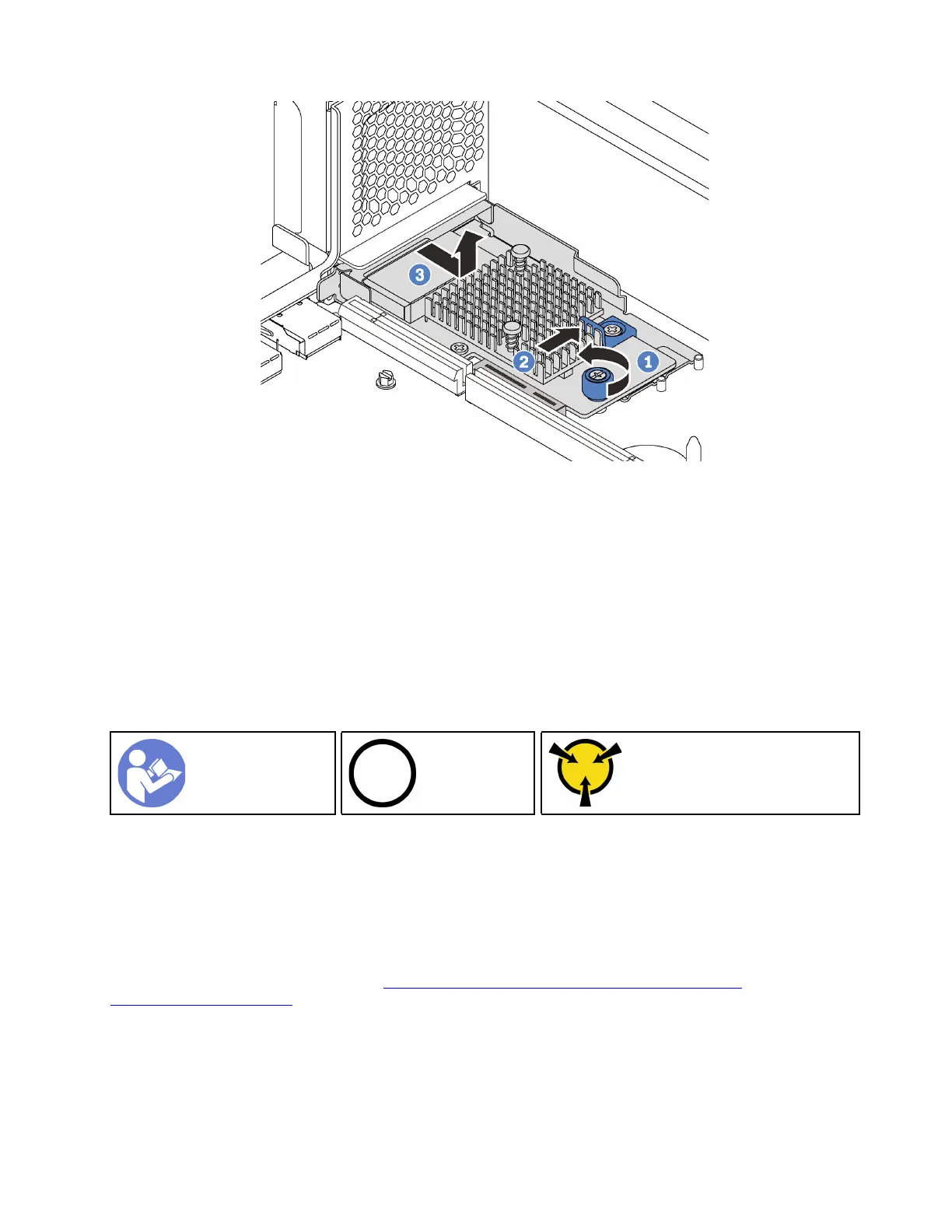

Figure 102. LOM adapter removal
Step 1. Loosen the thumbscrew that secures the LOM adapter.
Step 2. Push the LOM adapter out of the connector on the system board.
Step 3. Slide the LOM adapter as shown and lift the LOM adapter off the server as shown.
If you are instructed to return the old LOM adapter, follow all packaging instructions and use any packaging
materials that are provided.
Install the LOM adapter
Use this information to install the LOM adapter.
“Read the
installation
Guidelines” on
page 53
“Power off
the server
for this task”
on page 13
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 56
Before installing the LOM adapter, touch the static-protective package that contains the new LOM adapter to
any unpainted surface on the outside of the server. Then, take the new LOM adapter out of the package and
place it on a static-protective surface.
To install the LOM adapter, complete the following steps:
Watch the procedure
A video of this procedure is available at
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
C9jFjZnXQ6AmTXaIdX6_HJ
.
Chapter 3. Hardware replacement procedures 133
