Attention:
• Read “Installation guidelines” on page 83 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
A video for this task is available at:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-Cmxb8e4L4PvMQ7J5PxvuOK
• Youku: https://list.youku.com/albumlist/show/id_59643656
Procedure
Step 1. Touch the static-protective package that contains the hot-swap rear drive cage to any unpainted
surface on the outside of the server. Then, take the hot-swap rear drive cage out of the package
and place it on a static-protective surface.

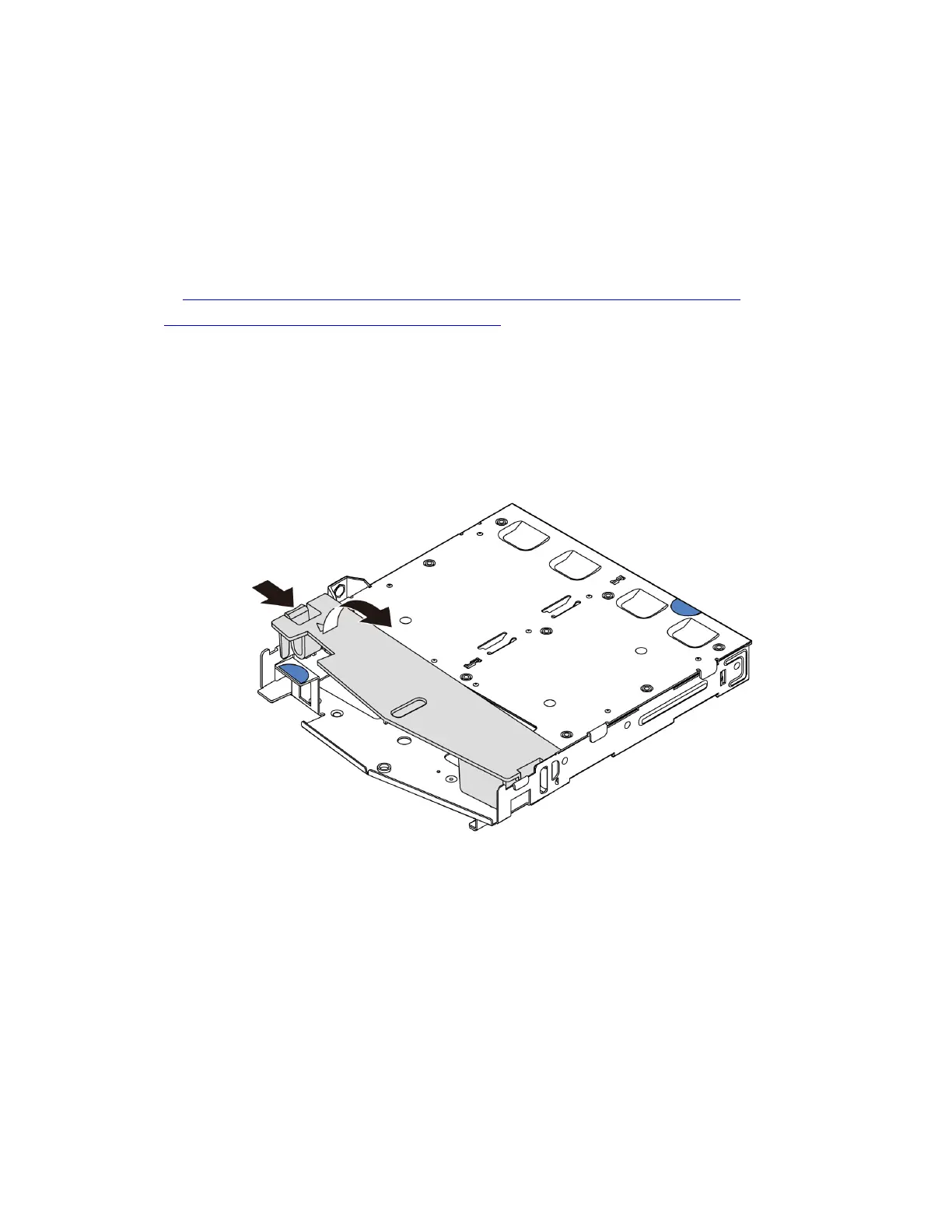

Step 2. Gently press and hold the tab on the hot-swap rear drive cage as shown and remove the air baffle
from the hot-swap rear drive cage.
Figure 78. Air baffle removal
Step 3. Align the rear backplane with the hot-swap rear drive cage and lower it into the hot-swap rear drive
cage.
