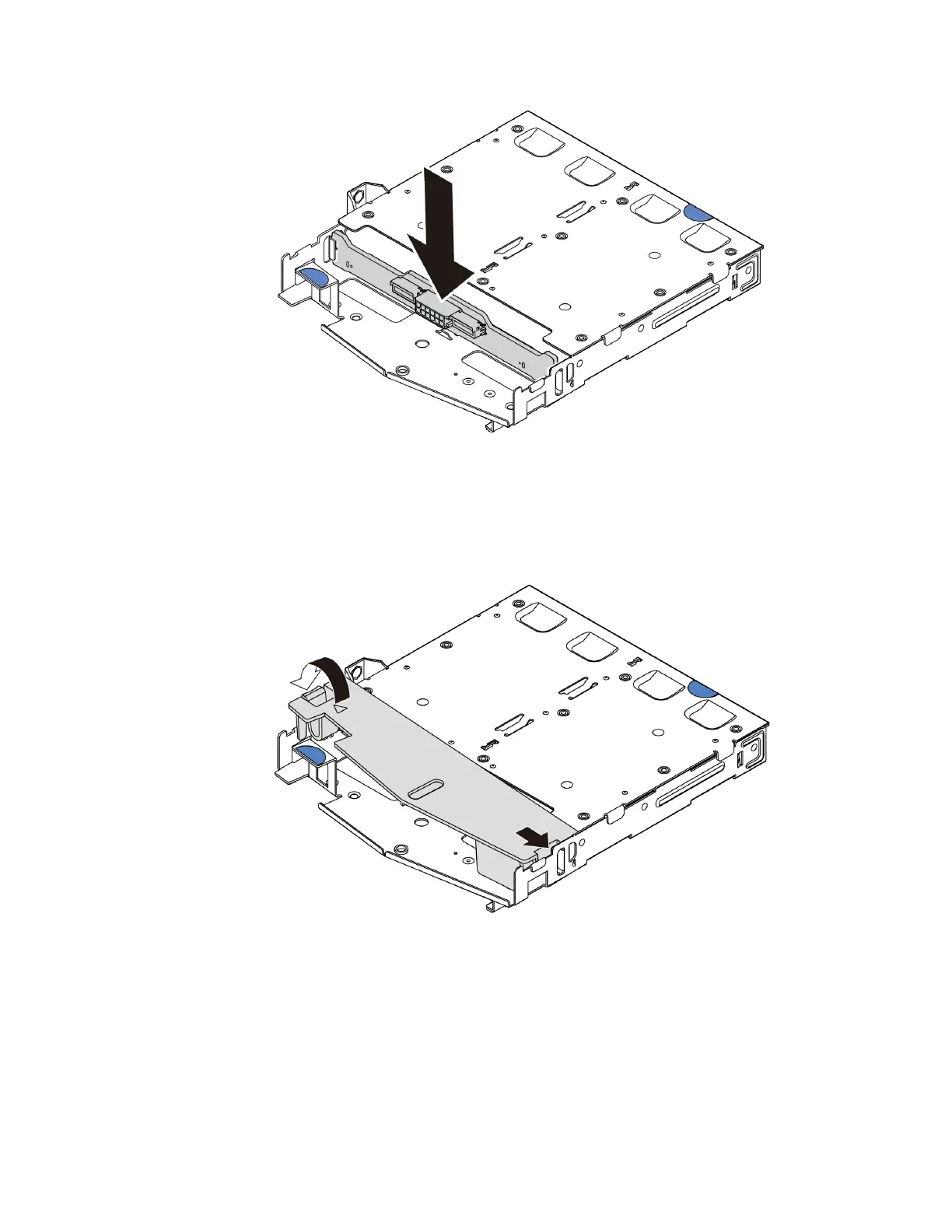

Figure 79. Rear backplane installation
Step 4. Connect the cables to the backplane. See “2.5-inch/3.5-inch drive backplane (power)” on page 65
and “2.5-inch/3.5-inch drive backplane (signal)” on page 66.
Step 5. Install the air baffle into the hot-swap rear drive cage as shown.
Figure 80. Air baffle installation
Chapter 4. Hardware replacement procedures 143
