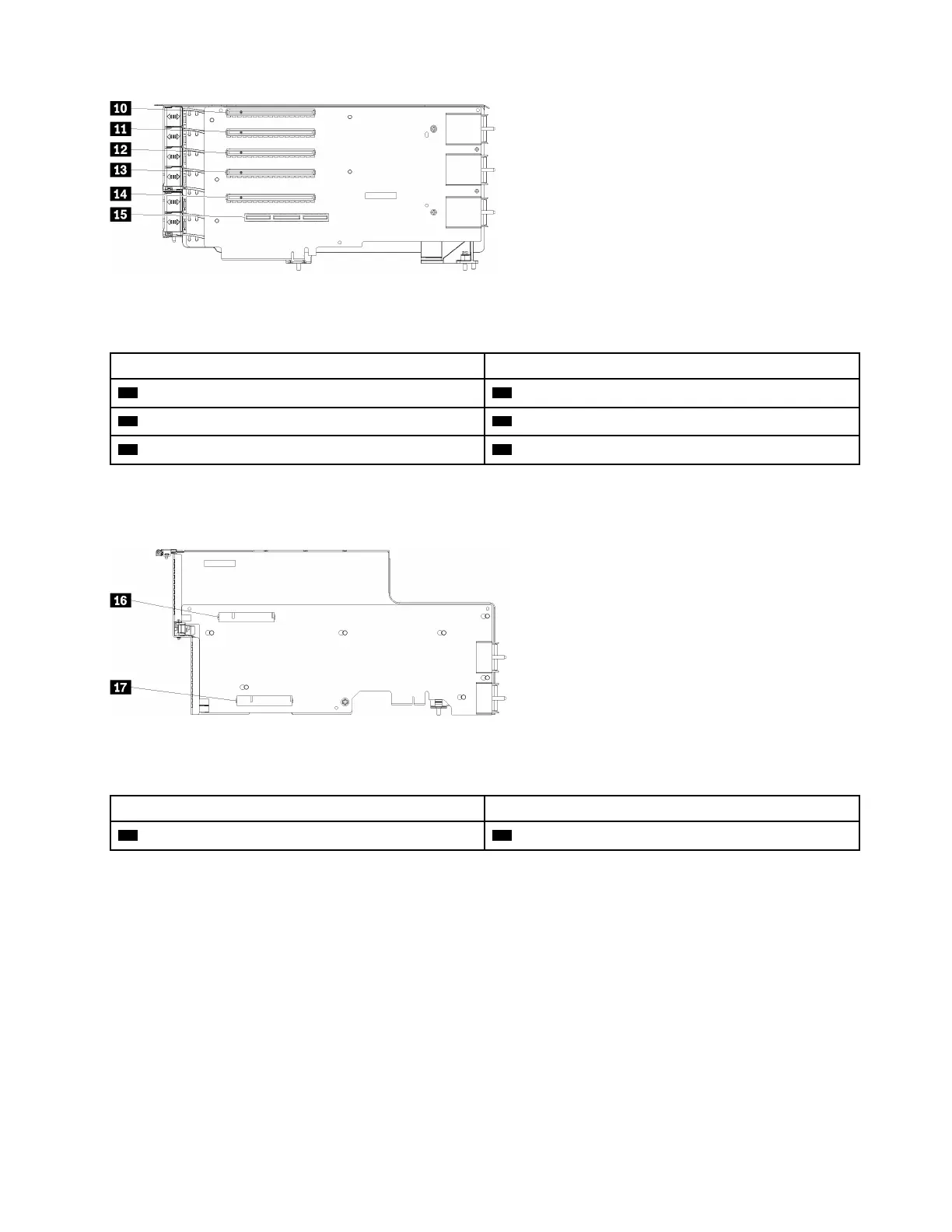

Figure 52. Slot 10 through 15 riser connectors
Table 27. Slot 10 through 15 riser connectors
Callout Callout
10 PCIe3 x16 (Slot 10) 13 PCIe3 x16 (Slot 13)
11 PCIe3 x16 (Slot 11) 14 PCIe3 x16 (Slot 14)
12 PCIe3 x16 (Slot 12) 15 ML2 PCIe3 x16 (Slot 15)
Slot 16 and 17 riser
There are two PCIe3 x8, full height, half length connectors in the slot 16 and 17 riser.
Figure 53. Slot 16 and 17 riser connectors
Table 28. Slot 16 and 17 riser connectors
Callout Callout
16 PCIe3 x8 (Slot 16) 17 PCIe3 x8 (Slot 17)
Storage interposer connectors
The following illustration shows the internal connectors on the interposer.
Note: Some cable connectors have locks or latches that must be disengaged to disconnect the cable.
For information about interposer cable routing, see “Cable routing for drives” on page 29.
Appendix B. Component reference 107
