Install a PCIe adapter in slots 1 through 4
PCIe adapters in slots 1 through 4 are in an I/O tray riser that is accessed from the rear of the server. With the
riser removed from the I/O tray, open the retention latch and insert the adapter in the riser; then, close the
retention latch.
S002
CAUTION:
The power control button on the device and the power switch on the power supply do not turn off the
electrical current that is supplied to the device. The device also might have more than one power
cord. To remove all electrical current from the device, ensure that all power cords are disconnected
from the power source.
CAUTION:
Make sure that all server power cords are disconnected from their power sources before performing
this procedure.
Before you install an adapter in slots 1 through 4, make sure that there is no filler installed in the slot where
you are installing the adapter.
Important: You must remove the riser from the I/O tray before installing an adapter. If you are installing a
network adapter (with an RJ45 connector), make sure that there is sufficient clearance to disconnect the
Ethernet cable from the adapter after it is installed.
Complete the following steps to install an adapter in slots 1 through 4.
Watch the procedure. A video of the installation process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DbSYJFY74PoKmph7vgrkKH&playnext=1
• Youku: http://list.youku.com/albumlist/show/id_50952215

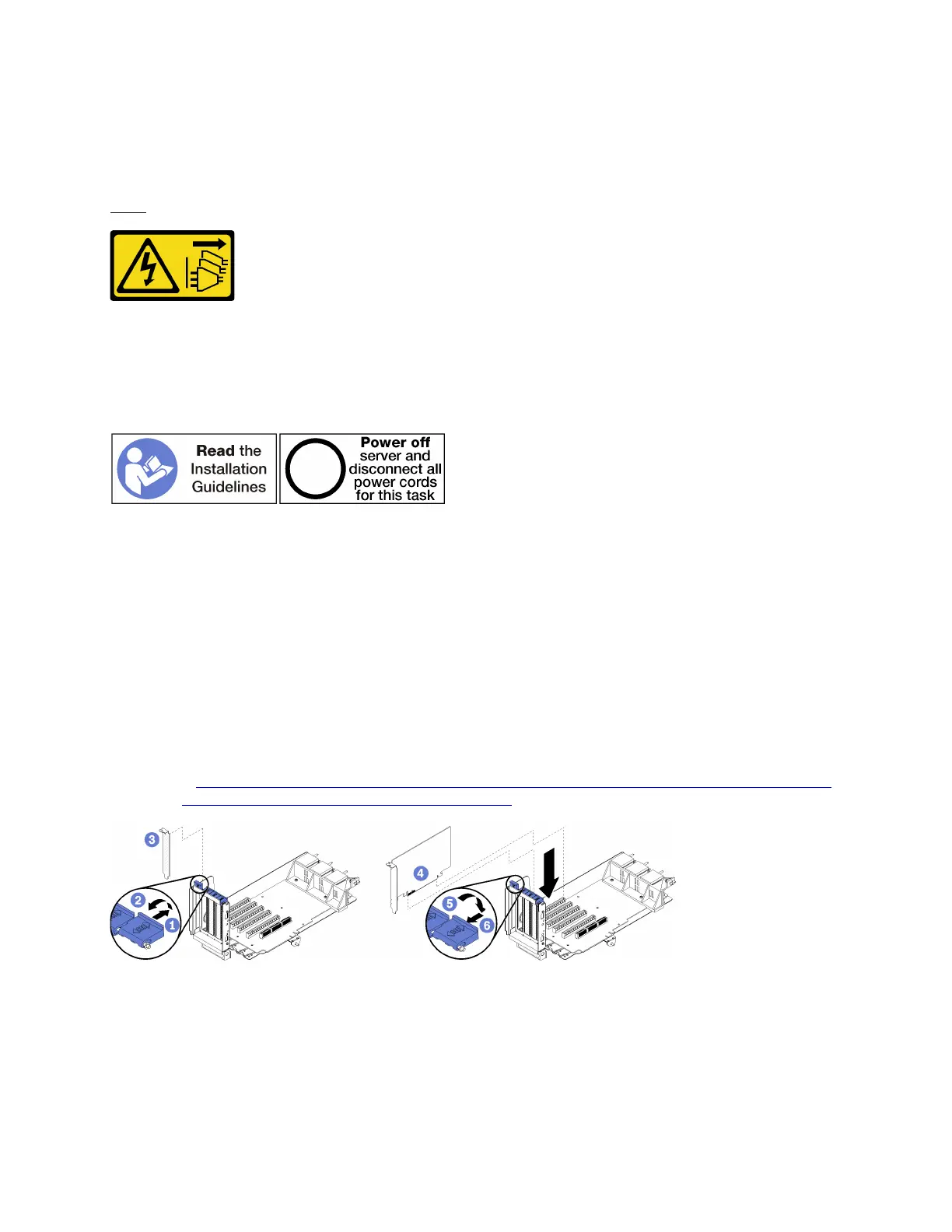

Figure 64. Adapter installation (slots 1 through 4)
Step 1. Open the retention latch.
Step 2. Align the adapter with the riser slot and insert it; then, press the adapter into the riser until the
connector is fully seated.
Step 3. Close and lock the retention latch.
Appendix B. Component reference 117
