Memory air baffle replacement
Use the following procedures to replace a memory air baffle.
Remove a memory baffle
Memory air baffles are in the compute system boards that are accessed from the front of the server.
Before you remove a memory air baffle:
1. Remove the front cover. See “Remove the front cover” on page 139.
2. Remove the compute tray where the compute system board and memory air baffles are installed. See
“Remove a compute tray” on page 123.
3. If you are removing a memory air baffle from the lower compute system board, remove the upper
compute system board or compute system board filler. See “Remove a compute system board” on page
126.
Complete the following steps to remove a memory air baffle.
Watch the procedure. A video of the replacement process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DbSYJFY74PoKmph7vgrkKH&playnext=1
• Youku: http://list.youku.com/albumlist/show/id_50952215
Note: Each memory air baffle spans six memory modules.

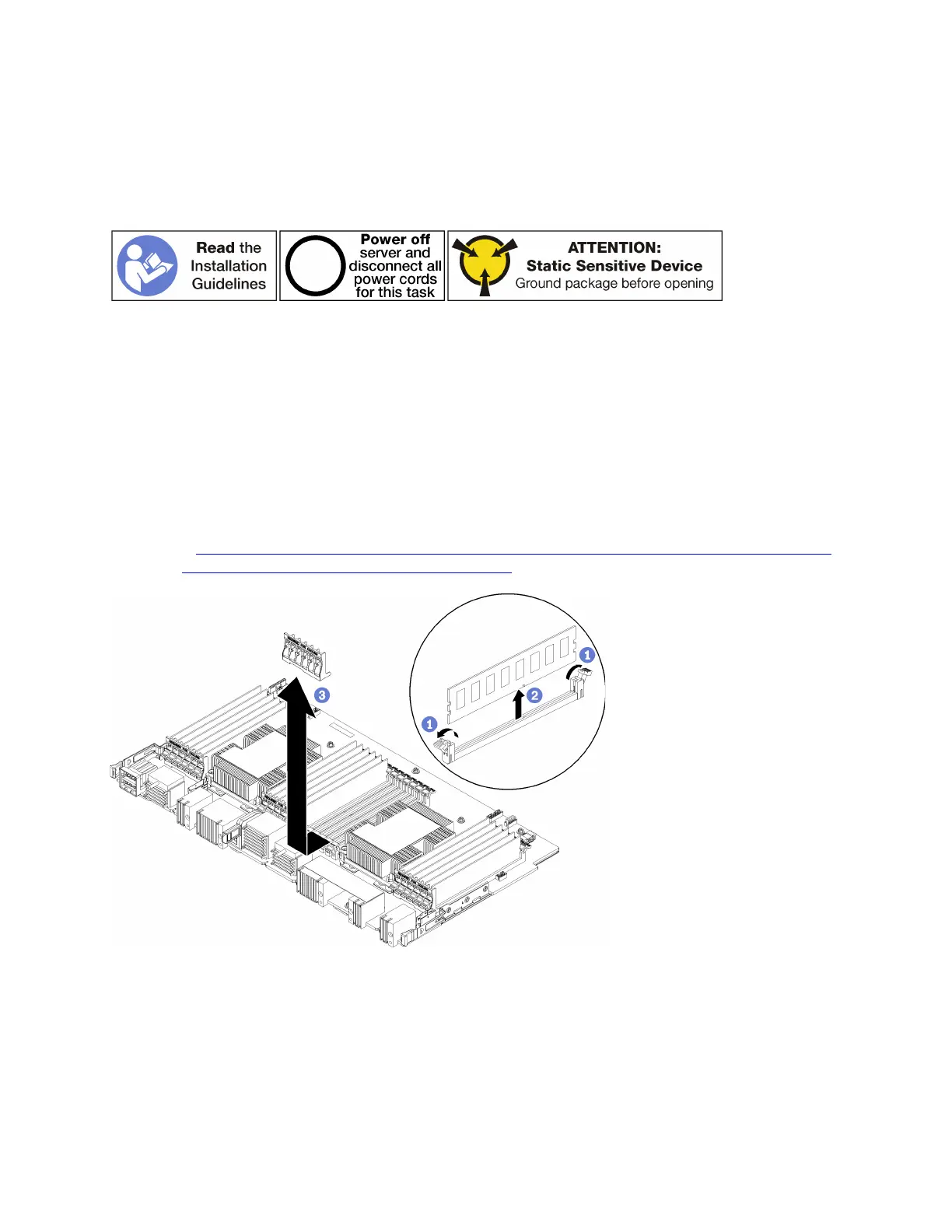

Step 1. Open the six pairs of memory module connector retaining clips that span the memory air baffle.
Step 2. Slide the memory air baffle up and off of the memory module connector retaining clips; then,
remove the air baffle from the compute system board.
If you are instructed to return the memory air baffle, follow all packaging instructions and use any packaging
materials that are provided.
Appendix B. Component reference 161
