Lenz digital plus lh01 - Page 25

25

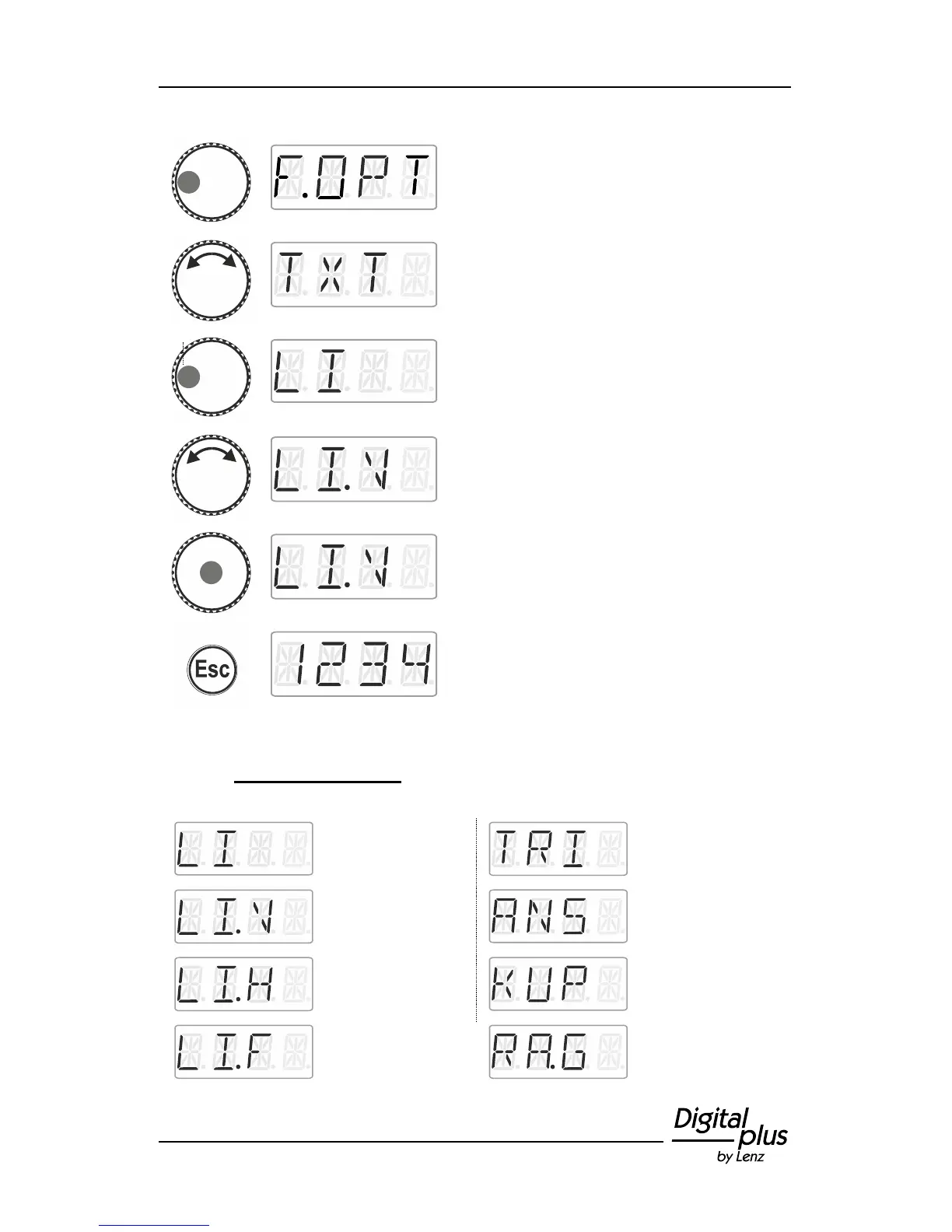

Click left. ‘F.OPT’ is displayed.
Turn the rotary knob to select ‘TXT’.
Click left. The first possible name is
displayed.
Turn the rotary knob to select the desired
name from the list.
Press the centre of the rotary knob to assign
the acronym to the function number.
Press 'Esc' to return to ‘Locomotive control’.
9.5.1 List of acronyms:
General lighting
Thunderer whistle
Lighting front
Announcements
Lighting back
Coupling
Lighting cab
Shunting mode
