Lenze 8400 HighLine C

Electrical installation
HighLine C control terminals
Digital inputs and outputs
6
l
224
EDS84ASC552 EN 8.1
6.8.3 Digital inputs and outputs
X5
24 V int.
50 mA
24EDI1DI2
DI3
DI4
RFR
DC 24 V
(+19.2...
+28.8 V)
S1
2.7k
2.7k
3.3k
3.3k
3.3k
X5
GND-I
DI5
DI6
DI7
GI
24I
1.6k
1.6k
3.3k
8400HLC036 8400HLC045

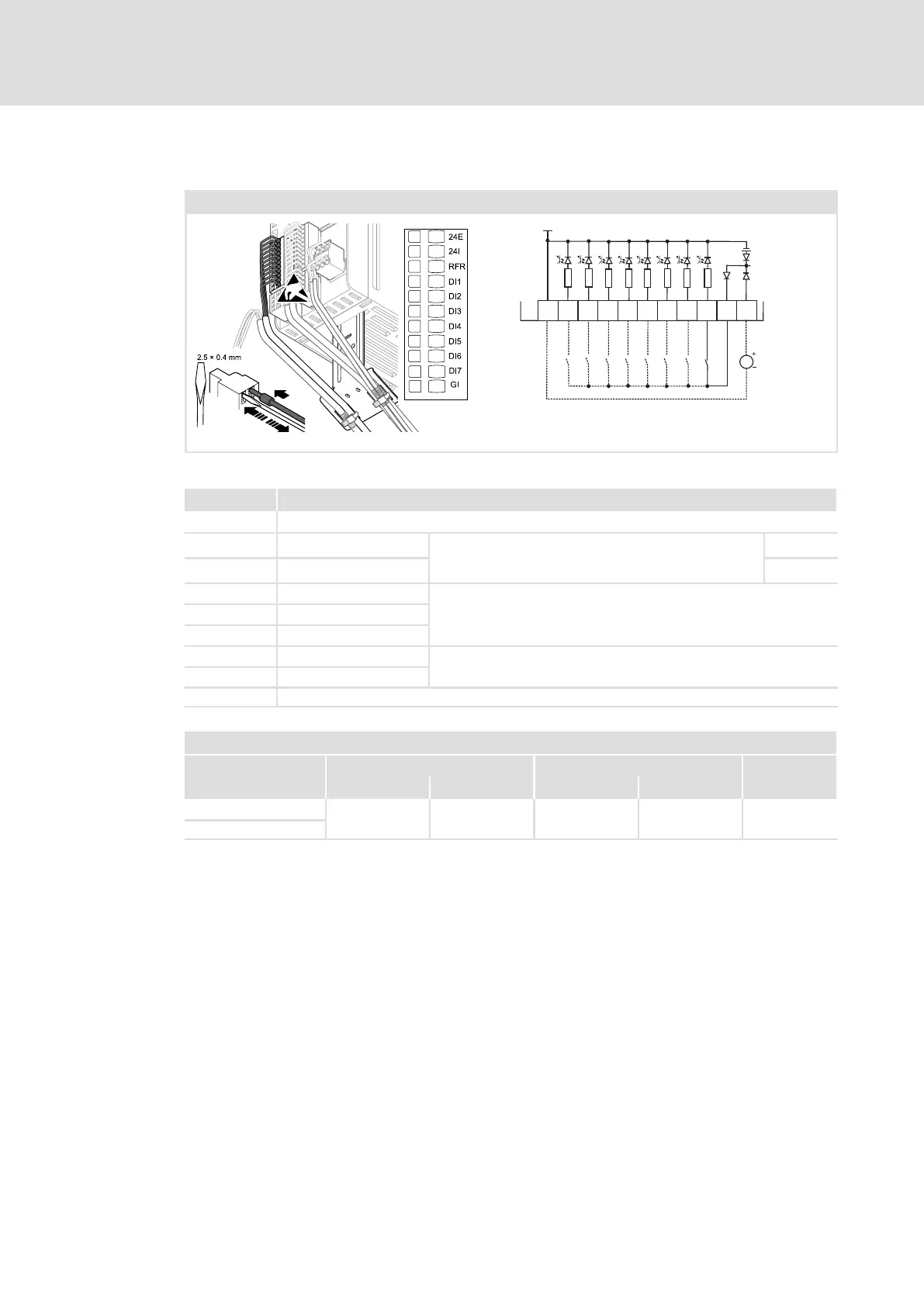

Fig. 6−40 Connection of the digital inputs
Labelling Description
RFR Controller enable/controller inhibit, always required
DI1 Digital input 1
^ 81
IEC61131−2, type 1 or two−track frequency input, for HTL
encoder 0 ... 200 kHz
track A
DI2 Digital input 2 track B
DI3 Digital input 3
^ 81
IEC61131−2, type 1
DI4 Digital input 4
DI5 Digital input 5
DI6 Digital input 6
IEC61131−2, type 1 or
two−track frequency input for HTL encoder 0 ... 10 kHz
DI7 Digital input 7
GI GND digital inputs
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
Flexible
0.2 ... 1.5
24 ... 16 − − −
With wire end ferrule
