Lenze 8400 HighLine C

Electrical installation
HighLine C control terminals
Digital inputs and outputs
6
l
225
EDS84ASC552 EN 8.1
X4
24O
DC 24 V
(+19.2...+28.8 V)
X4 DO1DO2
DO3
GO
GND-O
8400HLC035 8400HLC045

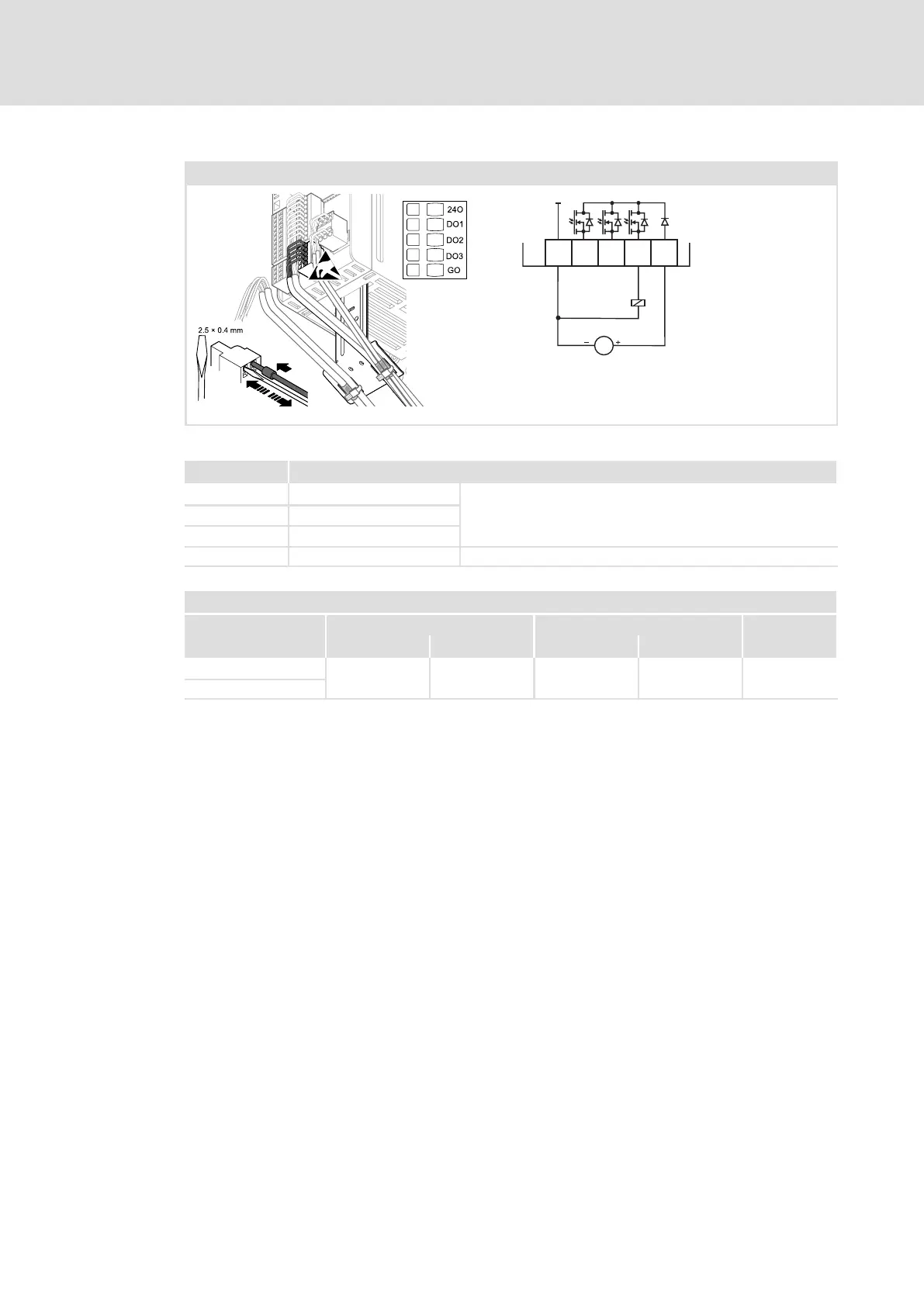

Fig. 6−41 Connection of the digital outputs
Labelling Description
DO1 Digital output 1
^ 81
IEC61131−2, type 1
DO2 Digital output 2
DO3 Digital output 3
GO GND digital outputs
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
Flexible
0.2 ... 1.5
24 ... 16 − − −
With wire end ferrule
