Parameterising 2/4xcounter module
2 × 32 bit counter with GATE and set/reset (modes 23 ... 26)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.13
L
12.4−38
EDSPM−TXXX−9.0−11/2009
epm−t105

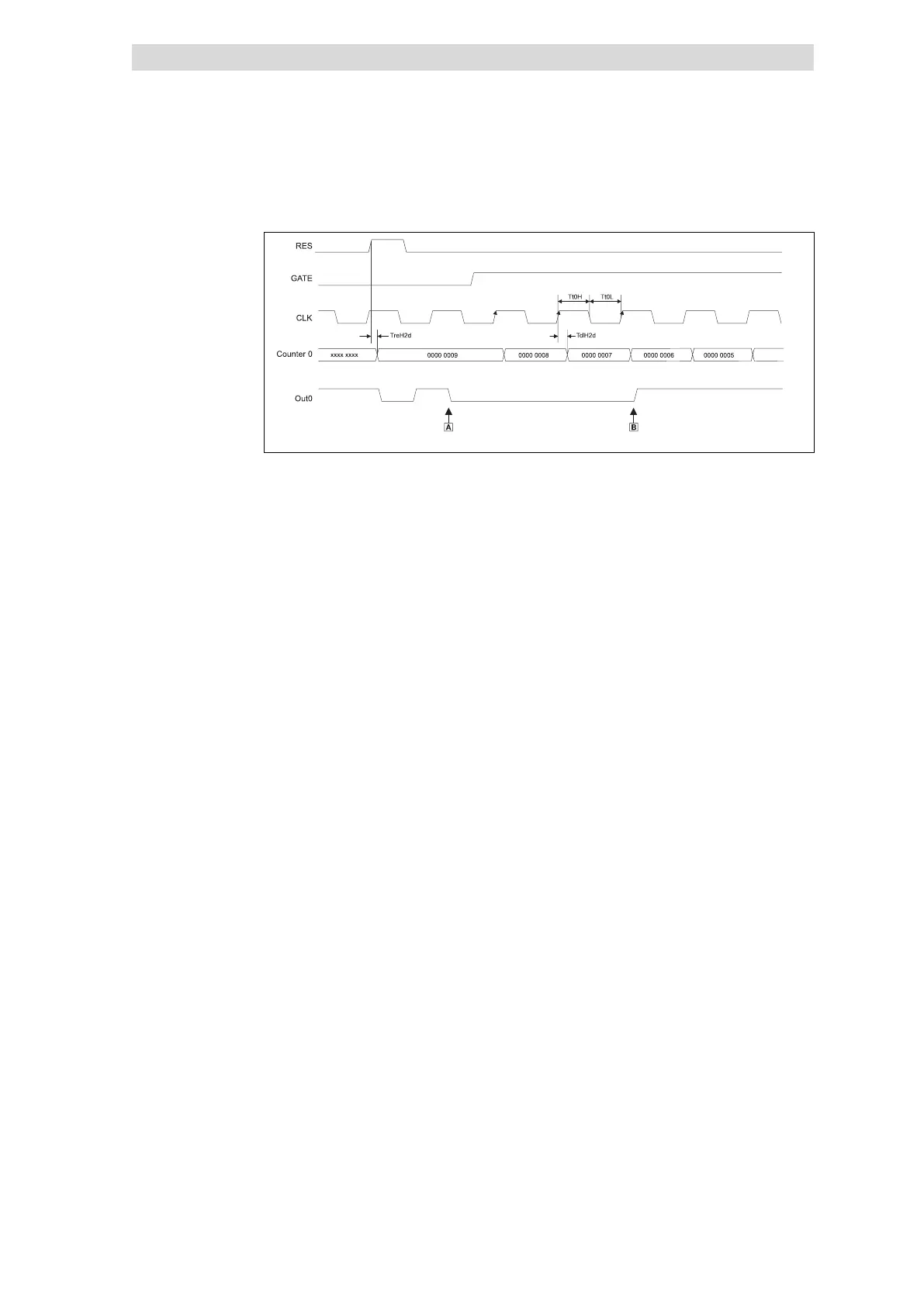

Fig. 12.4−50 Signal characteristic of 2/4xcounter in the mode 26 (downcounter, reset function)
OUT0 LOW active

Load counter

Compare reached
Signal characteristic in mode 26
