Parameterising 2/4xcounter module
2 × 32 bit counter with GATE and RES edge−triggered (modes 31 and 32)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.16
L
12.4−47
EDSPM−TXXX−9.0−11/2009
epm−t156

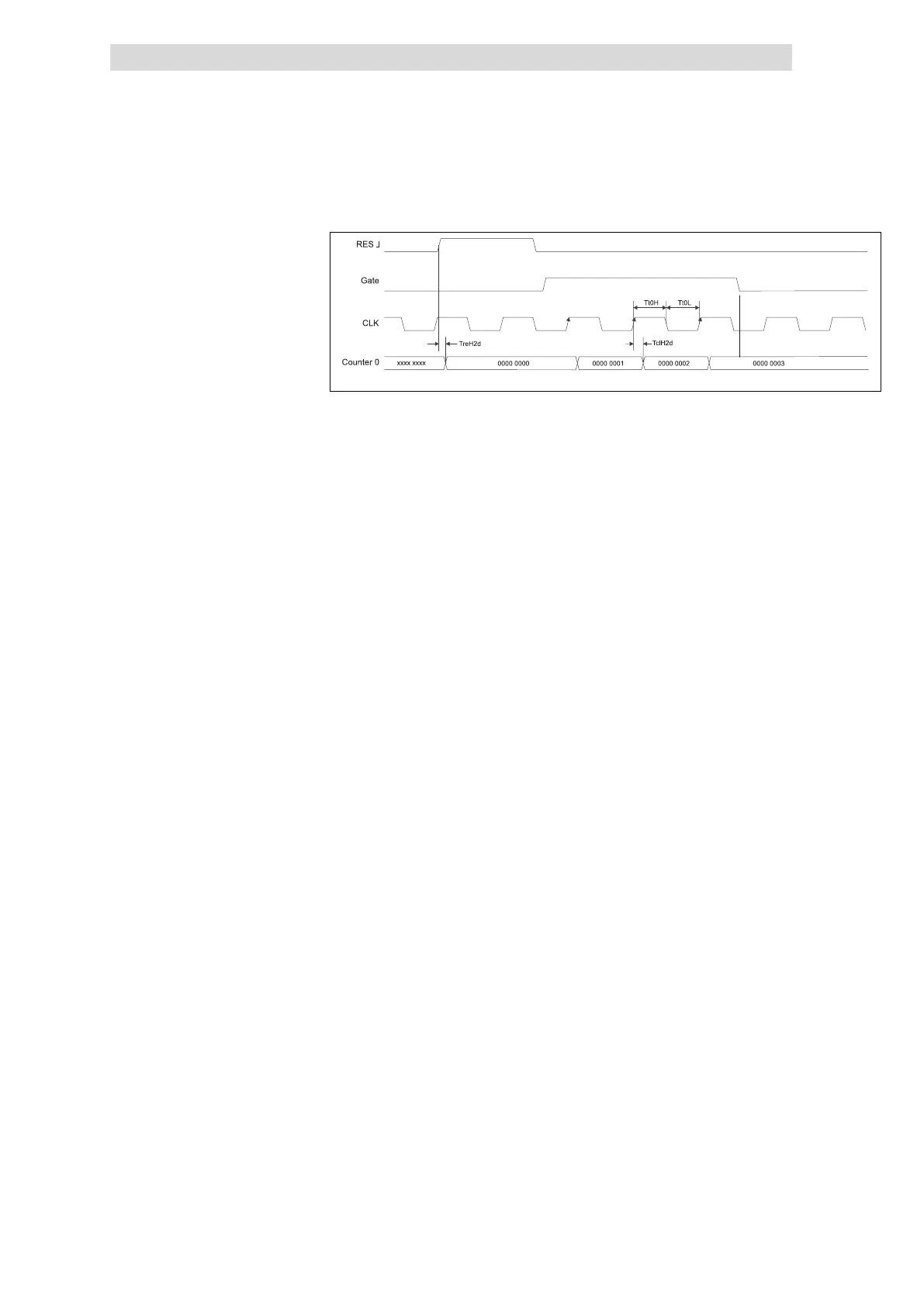

Fig. 12.4−65 Signal characteristic of 2/4xcounter in the mode 31
Signal characteristic
