Mechanical installation
Standard devices in the power range 0.37 ... 11 kW
Mounting with fixing rails (standard)
4
142
EDKVS9332X DE/EN/FR 8.0
4.1.2 Mounting with fixing rails (standard)
Mounting material required from the scope of supply:
Description Use
Quantity
EVS9321−Ex ...
EVS9324−Ex
EVS9325−Ex
EVS9326−Ex
Fixing rails Drive controller fixing 2 4
Dimensions
a
c
a
c
c1
d
b
b1
b1
d
b
LL
120
k
g
e
³ 100mm
³ 100mm
9300std062

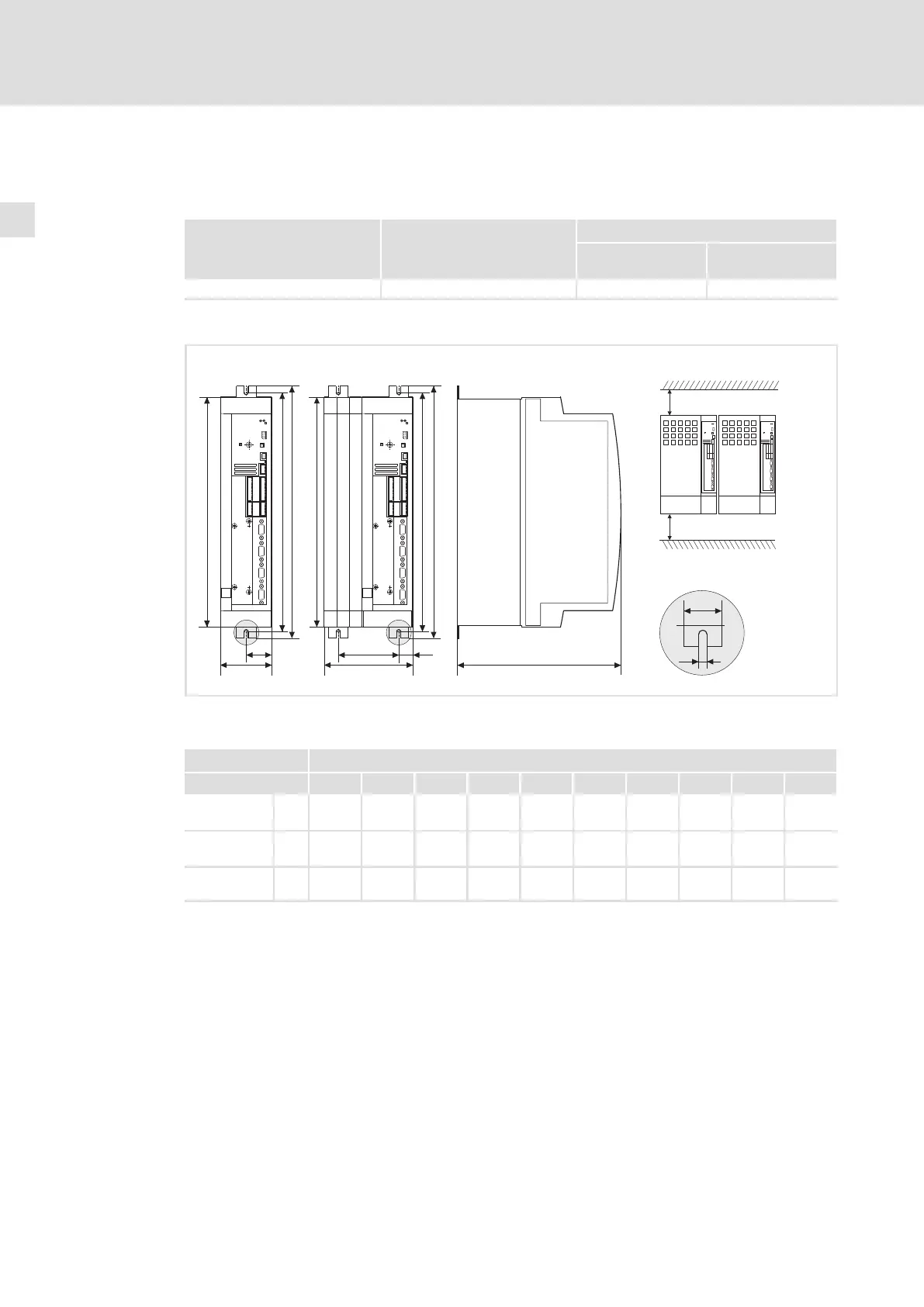

Fig. 4−1 Standard mounting with fixing rails 0.37 ... 11 kW
Drive controllers can be mounted side by side without spacing
9300 Dimensions [mm]
Type a b b1 c c1 d d1 e
1)
g k
EVS9321−Ex
EVS9322−Ex
78 384 350 39 − 365 ˘ 250 6.5 30
EVS9323−Ex
EVS9324−Ex
97 384 350 48.5 − 365 ˘ 250 6.5 30
EVS9325−Ex
EVS9326−Ex
135 384 350 21.5 92 365 ˘ 250 6.5 30
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
ƒ Attach the fixing rails to the housing of the drive controller.
