Mechanical installation
Standard devices in the power range 15 ... 30 kW
Mounting with fixing brackets (standard)
4
147
EDKVS9332X DE/EN/FR 8.0
4.2.2 Mounting with fixing brackets (standard)
Mounting material required from the scope of supply:
Description Use Quantity
Fixing bracket Drive controller fixing 4
Raised countersunk head screw
M5 × 10 mm (DIN 966)
Mounting of fixing bracket to the drive controller 4
Dimensions
c1
a
d1
c
e
d
b1
b
L
g
m
k
0
³ 100mm
³ 100mm
9300std065

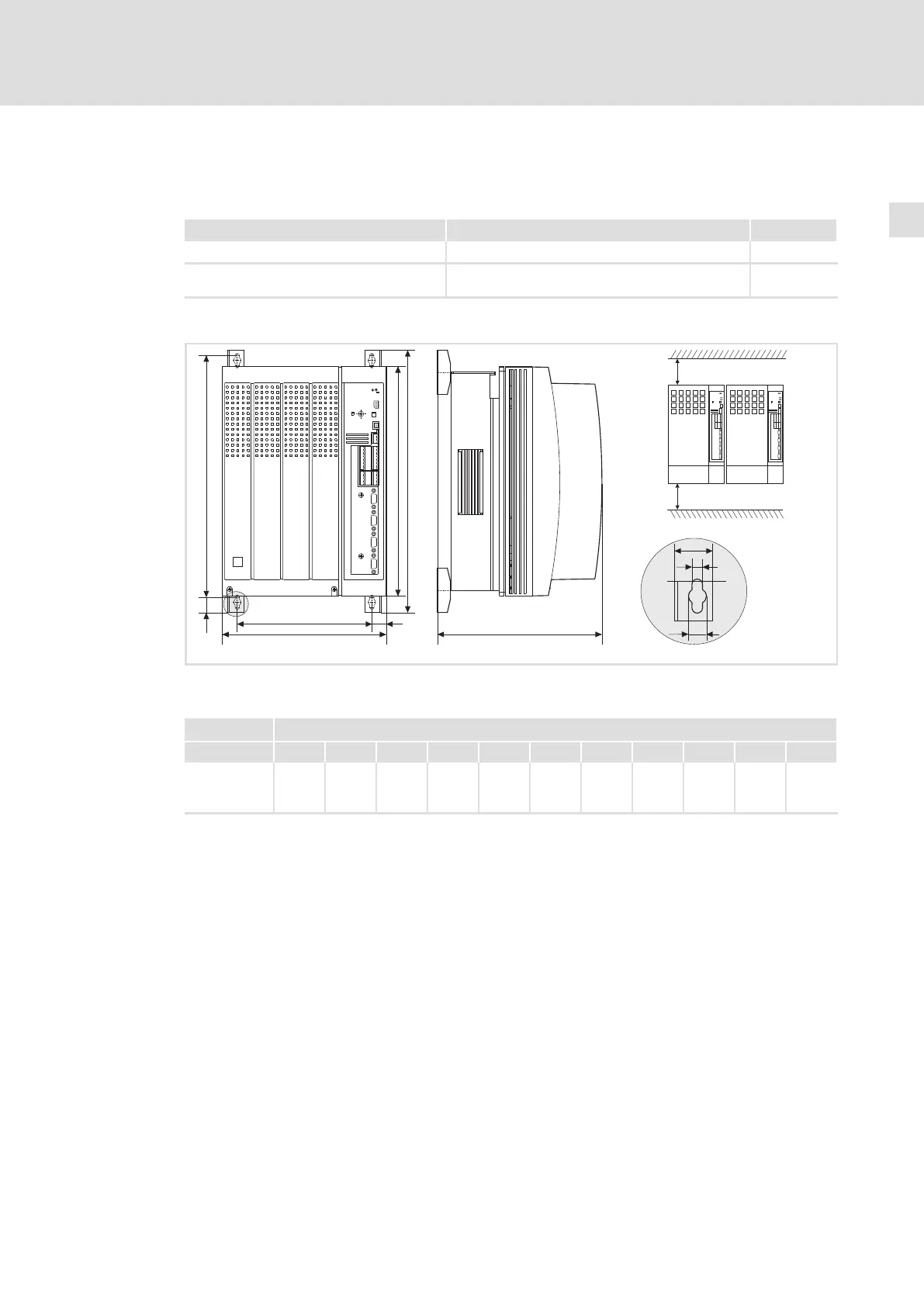

Fig. 4−4 Standard mounting with fixing brackets 15 ... 30 kW
Drive controllers can be mounted side by side without spacing
9300 Dimensions [mm]
Type a b b1 c c1 d d1 e
1)
g k m
EVS9327−Ex
EVS9328−Ex
EVS9329−Ex
250 402 350 22 206 370 24 250 6.5 24 11
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
ƒ Attach the fixing brackets to the heatsink plate of the drive controller.
