Lenze EVS9321-Ex Mounting Instructions

Mechanical installation
Standard devices with a power of 45 kW
Thermally separated mounting (push−through technique)
4

153
EDKVS9332X DE/EN/FR 8.0
4.3.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type EVS93xx−Exx must
be used. In addition, the mounting set EJ0010 for the push−through technique is required.
Dimensions
d2
d2
d2
d
b
g
e2
a
d1
h
h
e3
c2
c3
c4
e
e1
L
a1
d3
b1
c1
9300std069

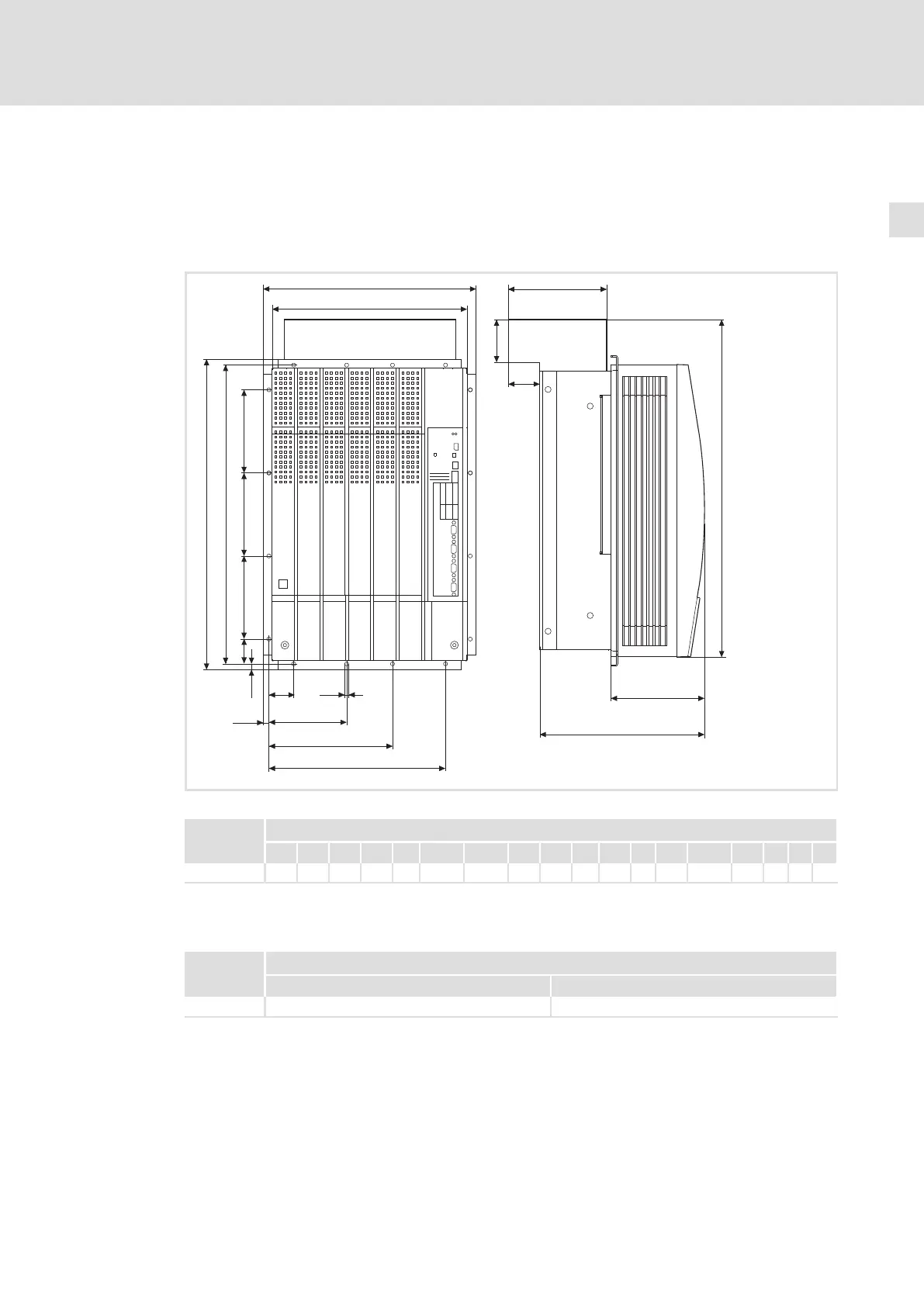

Fig. 4−8 Dimensions for thermally separated mounting 45 kW
9300 Dimensions [mm]
Type a a1 b b1 c1 c2 c3 c4 d d1 d2 d3 e
1)
e1 e2 e3 g h
EVS9330−Ex 373 340 543 591 45 137.5 217.5 310 525 45 145 81 285 163.5 185 66 7 9
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting cutout in control cabinet
9300 Dimensions [mm]
Type Width Height
EVS9330−Ex 320 515
