Electrical installation
Standard devices in the power range 15 ... 30 kW
Motor connection
5
181
EDKVS9332X DE/EN/FR 8.0
PE
T1
T2
U
VW
2
3
}
+
PE
0
1
U, V, W,
PE
5 Nm
44 lb-in
M 6
9300vec123

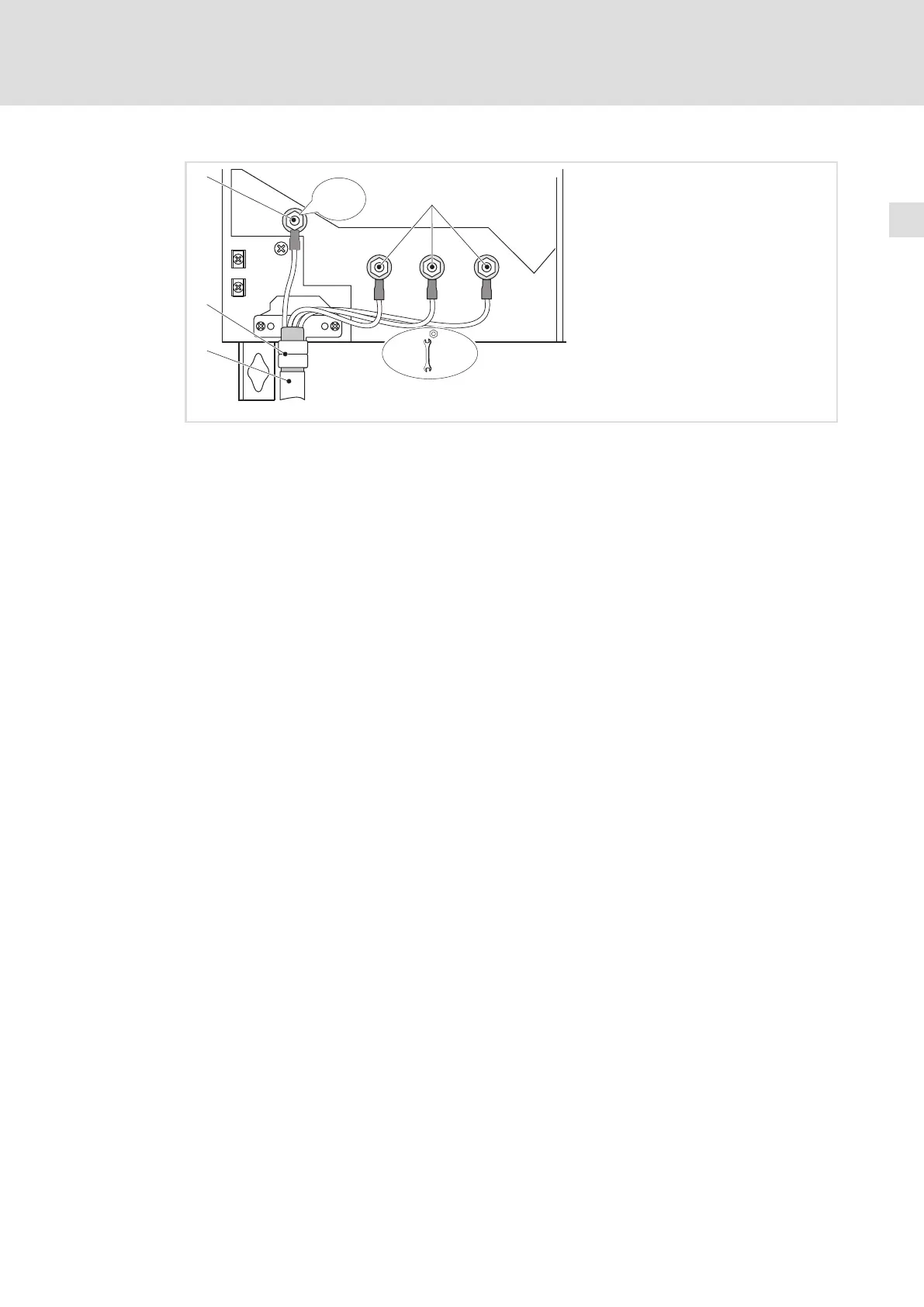

Fig. 5−14 Motor connection with KTY thermal sensor
Motor cable
Shield connection
Clamp the motor cable shield with the straps. If required, fix by means of cable tie.
PE stud
PE cable connection with ring cable lug
U, V, W
Motor cable connection
Check the correct polarity. Observe maximum length of the motor cable.
Max. connectable cable cross−section: 50 mm
2
with ring cable lug
