5 Commissioning
Set-up tools
22 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016
5 Commissioning
Hazards during parameter change
A parameter change gets immediately active. This can result in a unexpected reaction of the motor shaft.
Do Parameter change, if possible, only if the inverter is inhibited.
Hazards during inverter installation and commissioning
Possible death or severe personal injury.
Only authorized and qualified persons are allowed to install and commission the inverter.
Keep the manual “i500 Mounting and switch-on instructions“ at hand.
Proper lockout/ tagout procedures must be applied to prevent inadvertently starting of motor or mak-
ing alive of equipment.
The motor shall be uncoupled from load and free to rotate before performing tests. Verify that the
equipment is ready to be operated and that all safety circuits have been checked and are operational.

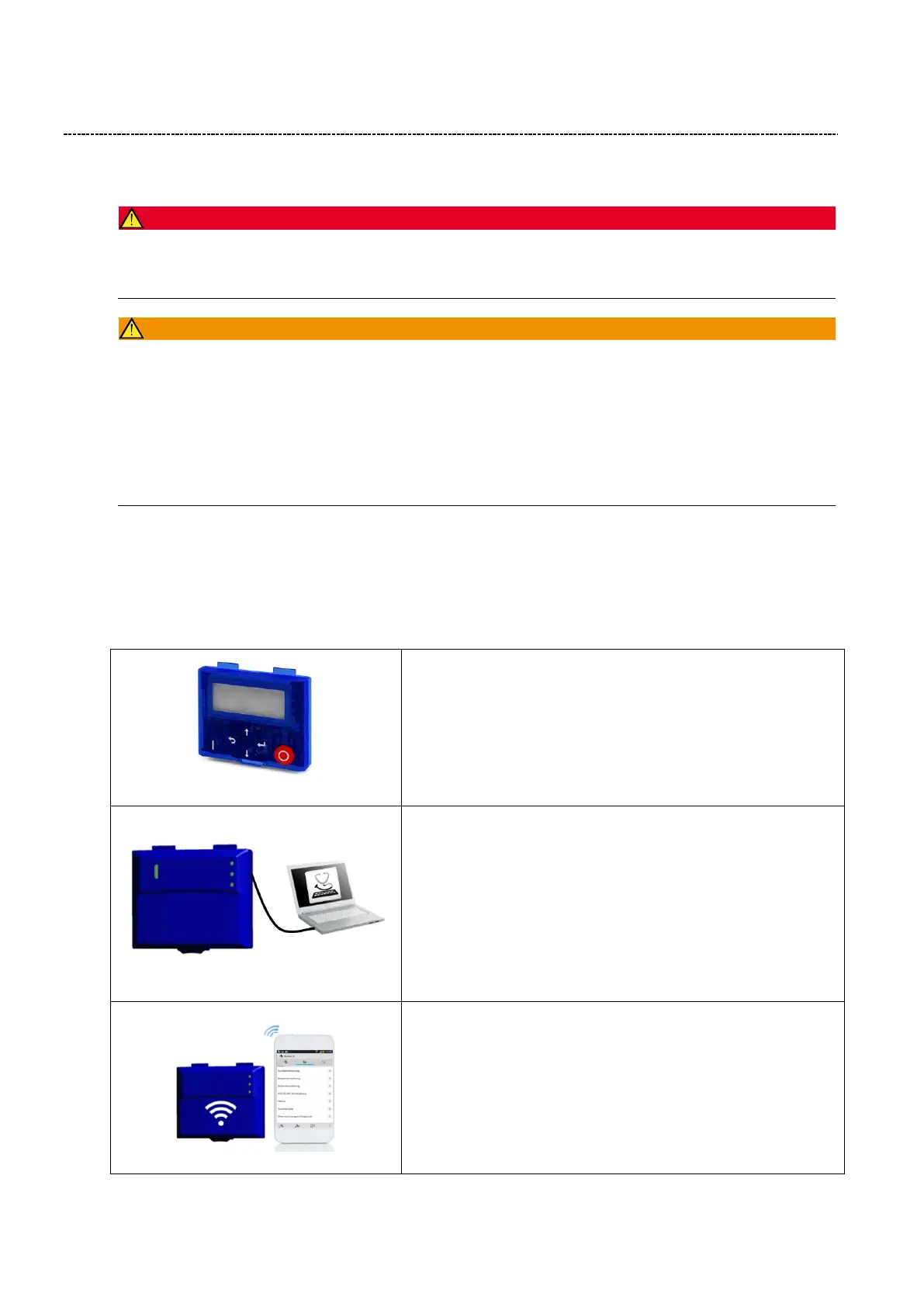

5.1 Set-up tools
Three set-up methods with special tools and software are available for commissioning the i500.
5.1.1 Overview
Keypad
Change parameter
Diagnosis
Local control
If it’s only a matter of setting a few key parameters such as accel-
eration and deceleration time, this can be done quickly on the
keypad.
(Cable: 2.5 m EWL0085, 5m EWL0086)
Easy Starter & USB adapter
Change parameter (advanced)
Out of the box commissioning (parameter change without main
power)
Diagnosis
Parameter management
If functions such as the motor potentiometer or sequence control
for a positioning application need to be set, it’s best to use the
Easy Starter engineering tool.
WLAN & Android App
Change parameter (advanced)
Diagnosis
Parameter management
This intuitive app
Emulates the inverter keypad on a smartphone.
Adjustment to simple applications such as a conveyor belt.
