5 Commissioning
Set-up tools
Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016 25

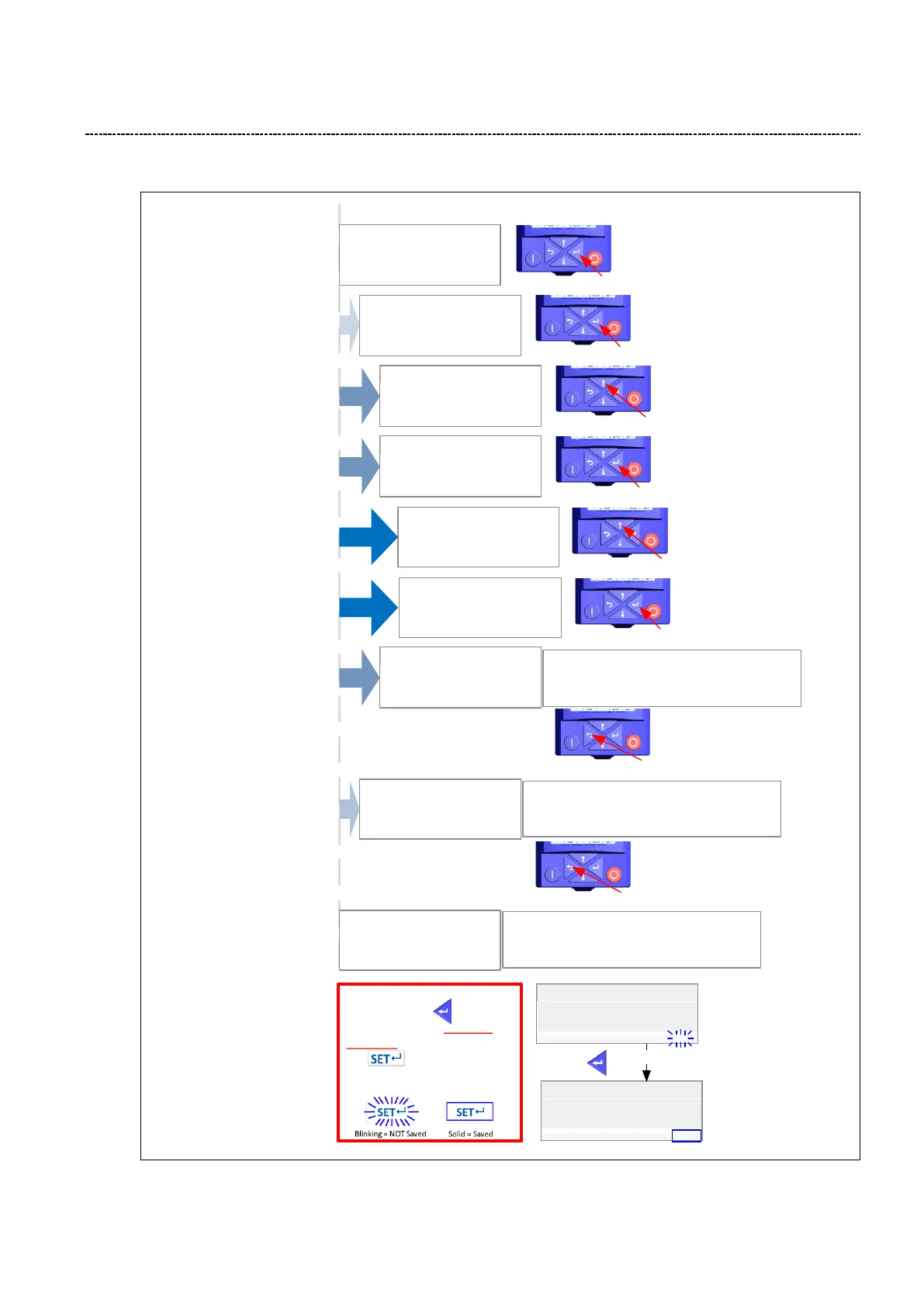

Navigation in Group 0 - Favorites
LOC REM MAN AUTO
VEL:FLEX:AIN1
SET8
STO P
Press
LOC REM MAN AUTO
Favorites
SET8
GRO U P 0
LOC REM MAN AUTO
Actual frequency
SET8
P10 0 . 00
Press 10 Times
LOC REM MAN AUTO
Max. frequency
SET8
P21 1 . 00
LOC REM MAN AUTO
P211.00 Hz
SET8
50. 0
Press until 87.0 is
displayed
LOC REM MAN AUTO
P211.00 Hz
SET8
87. 0
Press
LOC REM MAN AUTO
Max. frequency
SET8
P21 1 . 00
Press
At this point you could navigate to other parameters
in Group 0 using the Up & Down buttons. In this
example we will use the BACK button to return to
the Group list.
LOC REM MAN AUTO
Favorites
SET8
GRO U P 0
At this point you could navigate to the other groups
using the Up & Down buttons. In this example we
will use the BACK button to return to the main
screen.
Press
LOC REM MAN AUTO
VEL:FLEX:AIN1
SET8
Sto p
We are now back at the main screen from which we
started.
Operating Screen
Groups Screen
Parameter Screen
Parameter Screen
Setting Screen
Setting Screen
Parameter Screen
Groups Screen
Operating Screen
After all adjustments are
complete press key
for > 3 seconds to SAVE ALL
SETTINGS to memory.
The icon on the LCD
display will stop blinking when
saving is complete.
Press
Press
LOC REM MAN AUTO
VEL:FLEX:AI1
SET8
STO P
LOC REM MAN AUTO
Parameters Saved
SET8
P.S A V E D
Press >3s (Saving parameter)
