Technical data
Leuze electronic GmbH + Co. KG BPS 307i 86
1
2
3
all dimensions in mm
1 Clamping jaws for mounting on the BPS
2 Clamp profile for mounting to round or oval pipes (Ø16…20mm)
3 Rod holder, turnable 360°

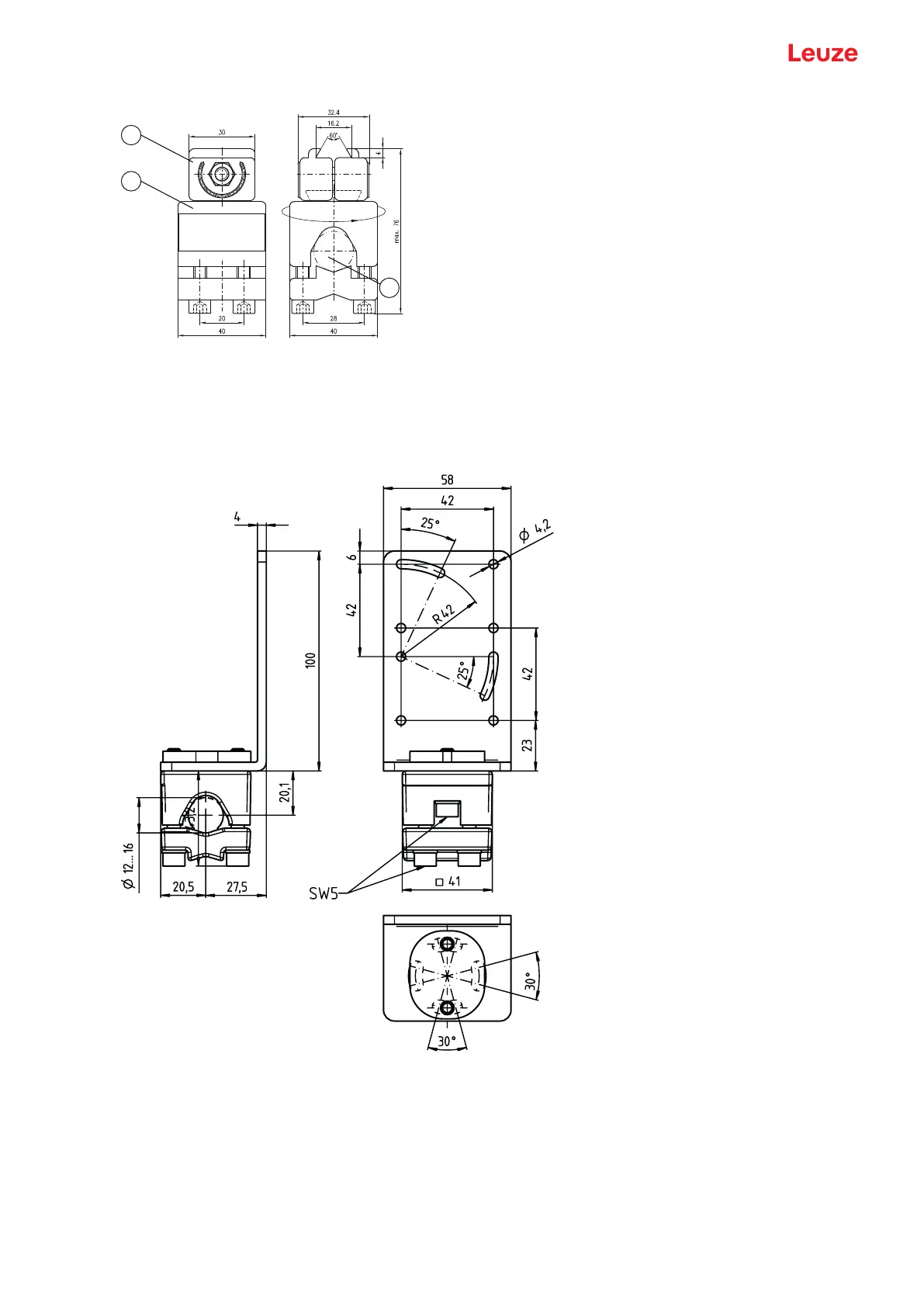

Fig.13.11: Dimensioned drawing BT56 mounting device
all dimensions in mm
Fig.13.12: Dimensioned drawing BT300-1 mounting device
