Technical data of BPS 8
Leuze electronic BPS 8 14
TNT 35/7-24V
BPS 8 SM 100… with lateral beam exit

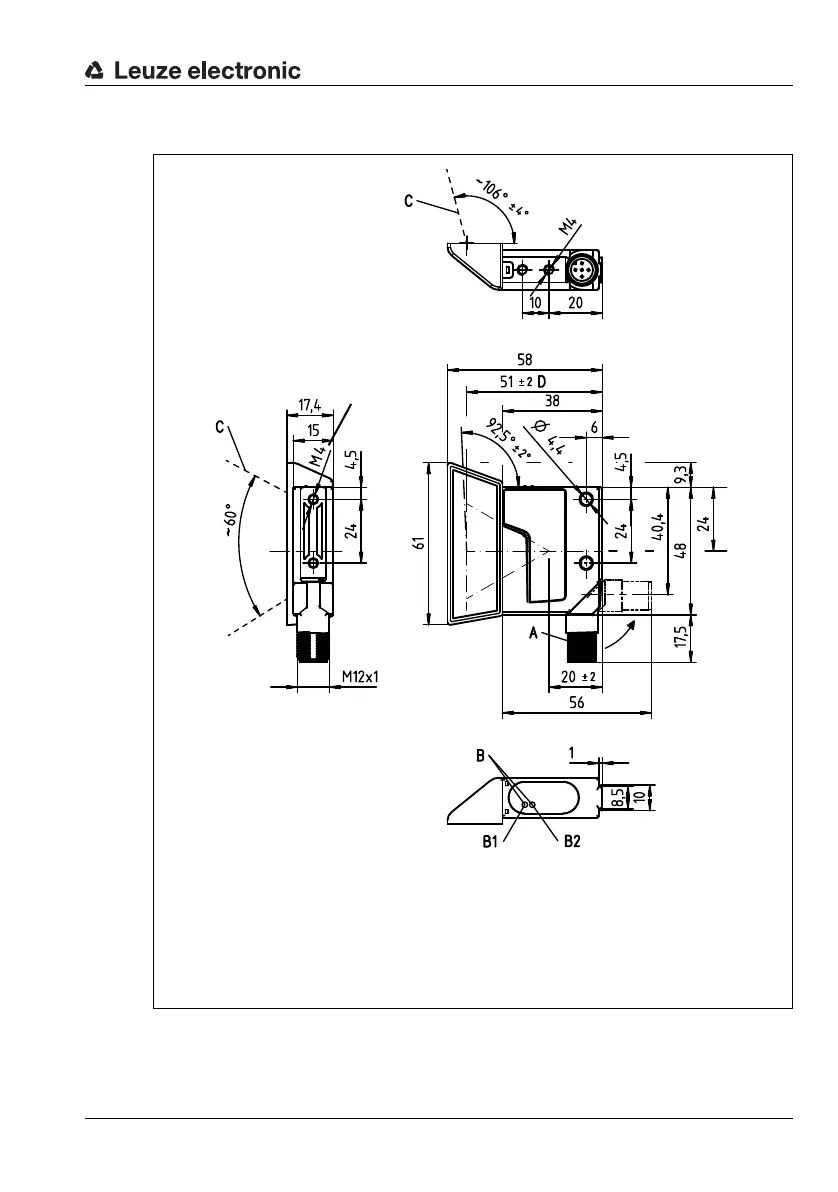

Figure 3.2: BPS 8 SM 100-01 dimensioned drawing
A Turning connector, turnable 90°
B Indicator LEDs (B1: status LED, B2: decode LED)
C Scanning beam, divergence max. 5mm at 150 mm reading distance
D Optical axis
Thread depth:
3mm
Thread depth:
3mm
