Leuze BPS 8 - Dimensioned Drawings and Reading Fields

Technical data of BPS 8
Leuze electronic BPS 8 13
TNT 35/7-24V
3.2 Dimensioned drawings
BPS 8 SM 102… with front beam exit

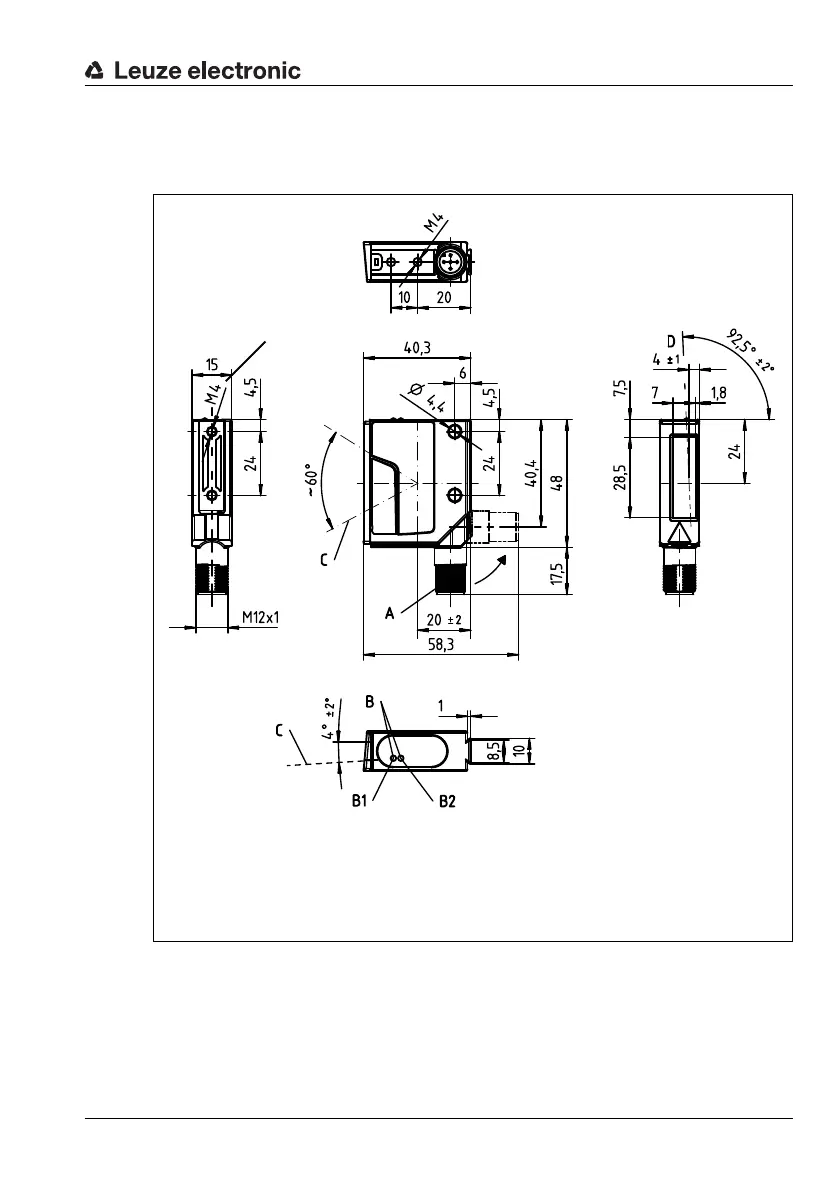

Figure 3.1: BPS 8 SM 102… dimensioned drawing
A Turning connector, turnable 90°
B Indicator diodes (B1: status LED, B2: decode LED)
C Scanning beam, divergence max. 5mm at 150 mm reading distance
D Optical axis
Thread depth:
3mm
Thread depth:
3mm
