6.2 Mounting the BPS 8
There are different types of mounting arrangements for the BPS 8:
1. Directly, using the 2 through holes in the housing.
2. Using the BT 8-01 mounting device on the through holes.
3. Using the BT 8-0 mounting device on the dovetail.

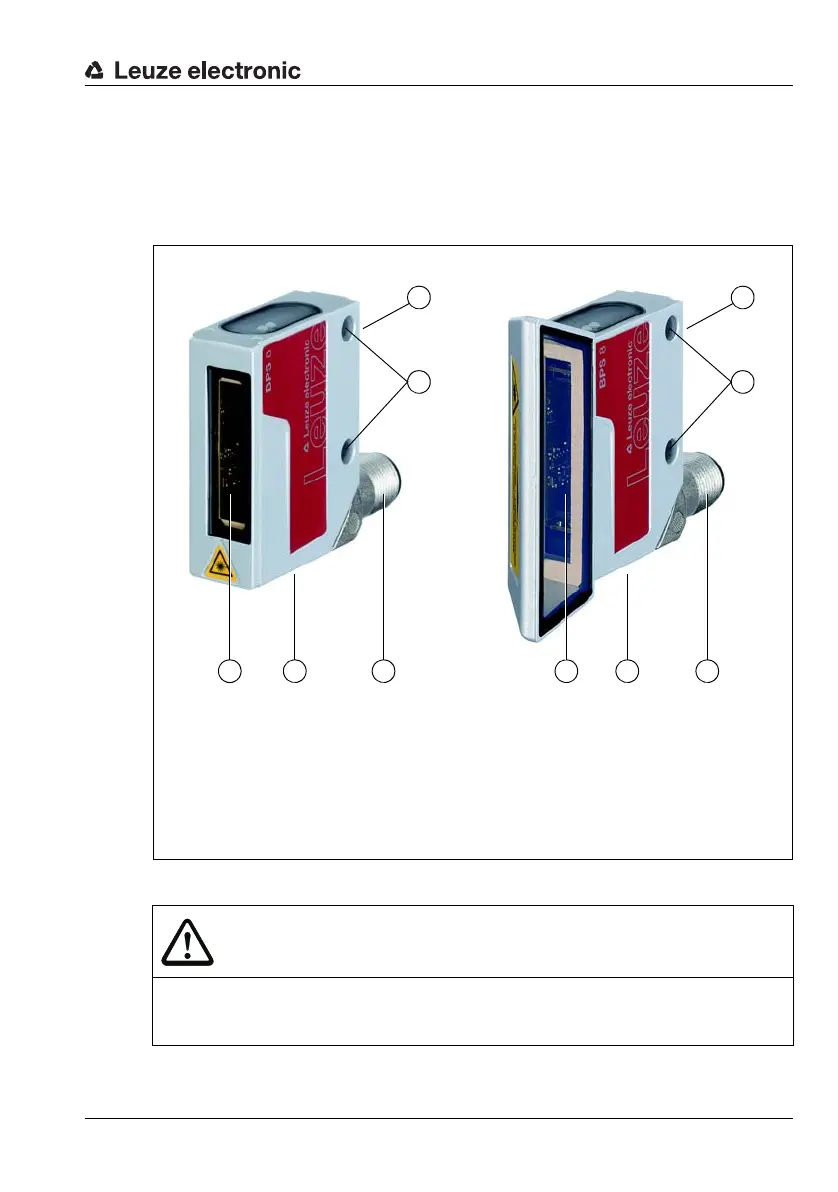

Figure 6.7: BPS 8 mounting options
CAUTION
For the position calculation, the scanning beam of the BPS 8 must be incident on
the bar code tape without interruption. Ensure that the scanning beam is always
incident on the BCB when the system is moving.
A
B
A Reading window with front beam exit
B Reading window with lateral beam exit
C Ø 4.4mm through holes for mounting
D Dovetails and two M4 mounting threads at the rear and bottom side of the device
E M12 connector, turnable
D
C
D
C
E E
BPS 8 SM 102 BPS 8 SM 100
D D
