Mounting and installation
Leuze electronic BPS 8 40
TNT 35/7-24V
Replacing a section of defective bar code tape
Determine the values of the defective position bar codes using the value printed in plain
text. If this value is no longer legible, the position value of the next position bar code can
be determined from the last legible value in the continuing 3 cm grid dimension.
Download the required repair kit PDF file, look for the page(s) with the required position
bar codes and print them out.
Trim the required position bar codes and affix them over the defective positions of the
bar code tape.

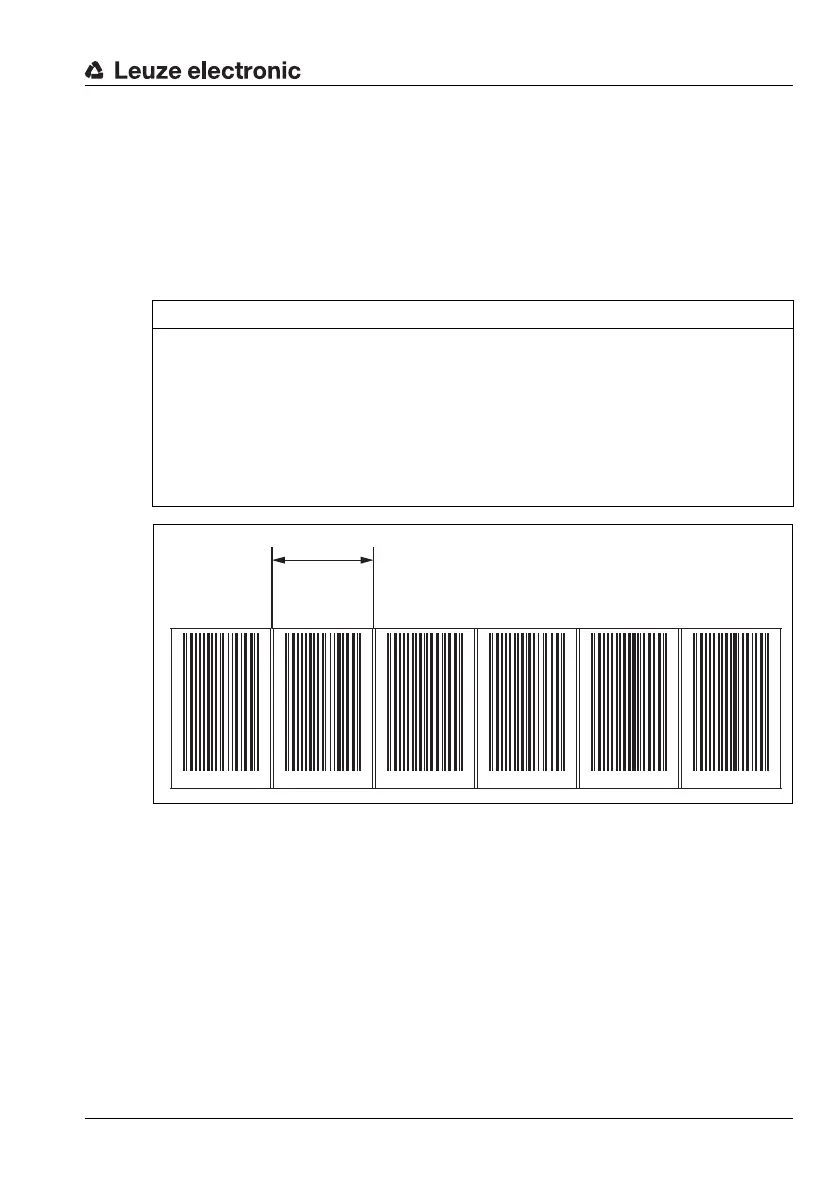

Figure 6.6: Checking the print results of the BCB8 repair kit (30 mm grid)
NOTE
Printing coding
Select only those pages that are actually required.
Change the printer settings so that the bar code is not distorted.
Check the print results and measure the distance between two bar codes ((see
figure 6.6))
Cut the code strips and arrange them next to one another. The code content must
always increase or decrease in increments of 30 mm. Check that the printed values
increase by 3.
BCB8 BCB8
BCB8
BCB8 BCB8
BCB8
000036 000039 000042 000045 000048 000051
30 mm
