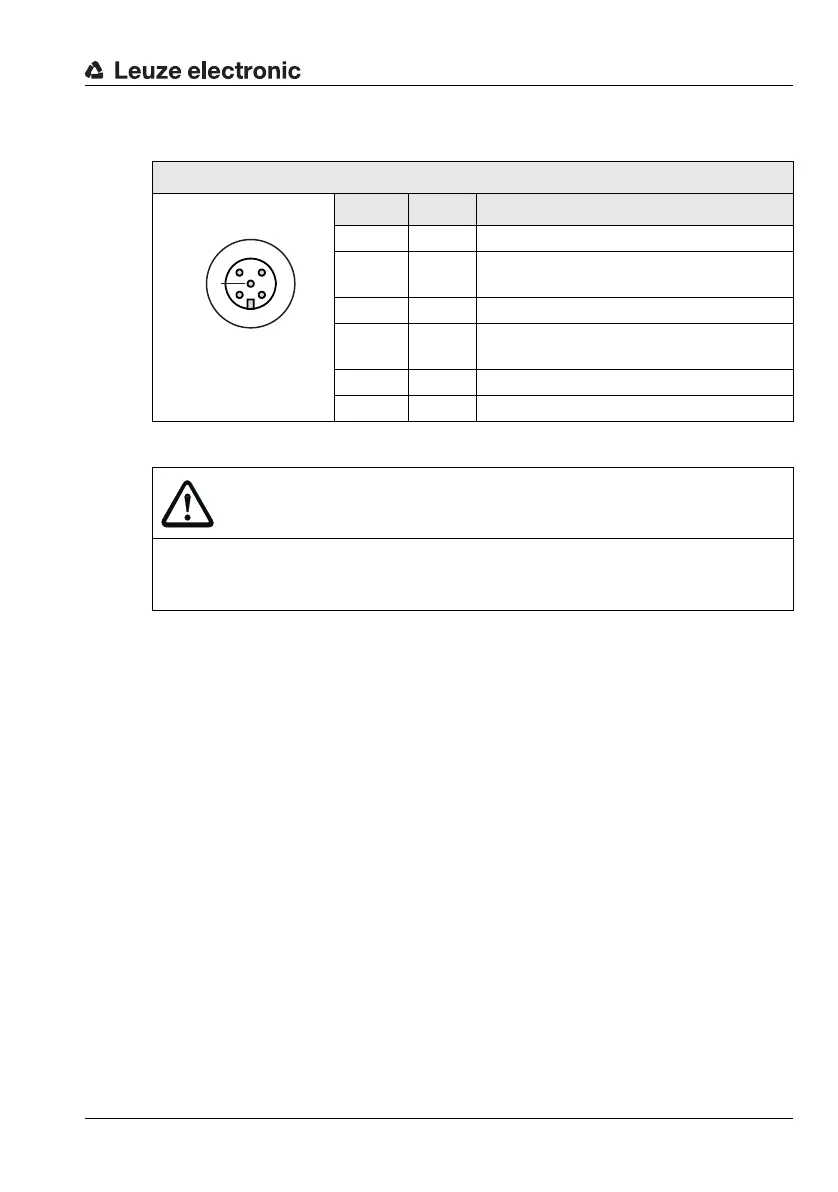

7.3.2 PWR IN HOST/RS 232 connector – voltage supply and RS 232
Figure 7.3: MA 8.1 – Pin assignment PWR IN HOST/RS 232 connector
PWR IN HOST/RS 232 (5-pin connector, A-coded)
Pin Name Comment
1VINPositive supply voltage: +10 … +30VDC
2TXD
RS 232 transmit data from the BPS 8 to the
host
3GNDSupply voltage: 0VDC
4RXD
RS 232 received data from the host to the
BPS 8
5FEFunctional earth
Thread FE Functional earth (housing)
CAUTION
Degree of protection IP 67!
Degree of protection IP 67 is achieved only if the connectors and caps are screwed into
place!
3
21
4
5
RXD GND
VIN
FE
TXD
PWR IN
HOST/RS232
M12 connector
(A-coded)
