Electrical connection
Leuze electronic BPS 8 49
TNT 35/7-24V
7.2 Electrical connection BPS 8
7.2.1 BPS 8 - PWR IN - Voltage supply, RS 232, Switching input/output

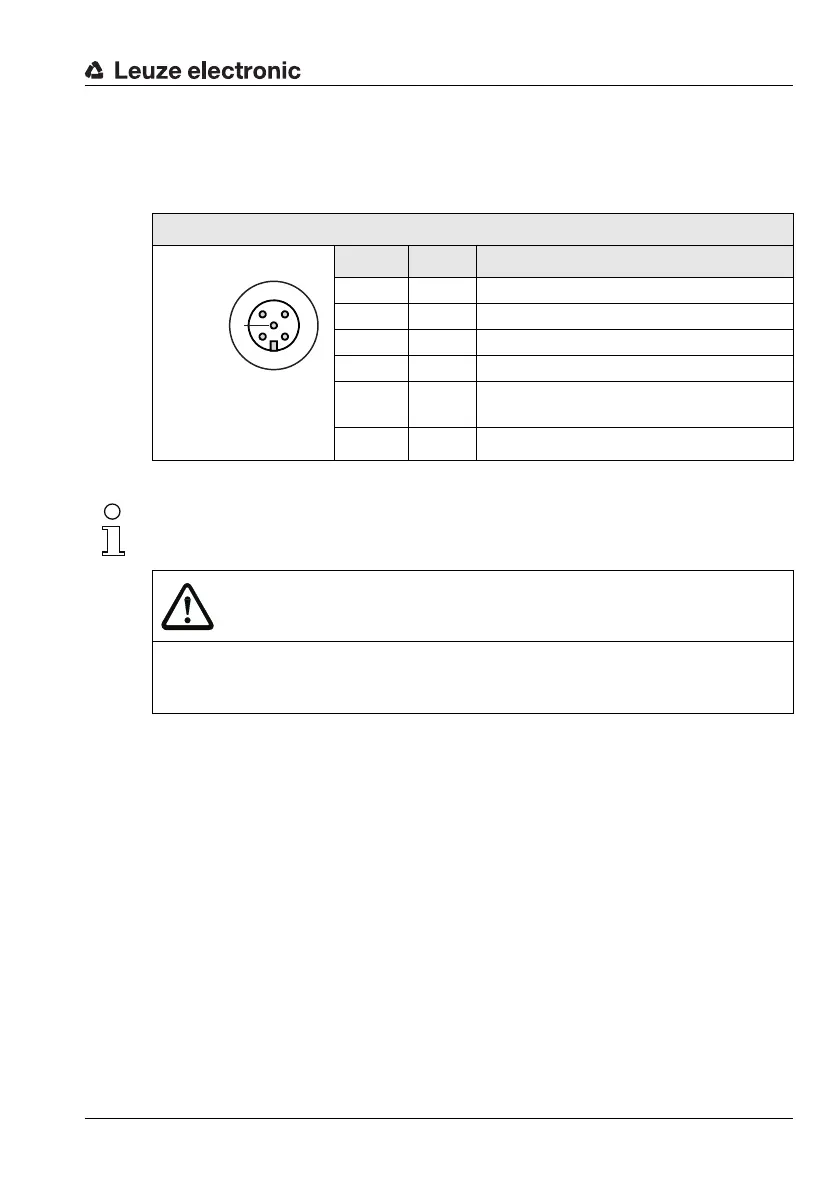

Figure 7.1: BPS 8 - Pin assignment PWR IN
The switching input/switching output are programmed via the parameters in the configura-
tion software BPS Configuration Tool in the tabs Switching input and Switching output. For
more information see also Chapter 8.5.4 and Chapter 8.5.5, Page 80 et seq.
PWR IN (5-pin connector, A-coded)
Pin Name Comment
1 VIN Positive supply voltage: +4.9 … +5.4VDC
2 TXD RS 232 transmission line
3 GND Supply voltage: 0VDC
4 RXD RS 232 receiving line
5
SWIN/
SWOUT
Configurable switching input/output
Thread FE Functional earth (housing)
CAUTION
Degree of protection IP 67!
Degree of protection IP 67 is achieved only if the connectors and caps are screwed into
place!
3
21
4
5
RXD GND
VIN
SWIN/SWOUT
TXD
PWR IN
M12 connector
(A-coded)
