MA 8… / MA 2xxi connection units
Leuze electronic BPS 8 17
TNT 35/7-24V
4.1 MA 8.1 connection unit
The MA 8.1 modular connection unit is an optional accessory for the connection of a BPS 8
to a DC voltage supply of 10 to 30 V DC. If offers the following advantages over the instal-
lation of the BPS 8 as a stand-alone device:
• M12 socket for switching input and switching output
• M12 connector for RS 232 interface and voltage supply 24VDC
• M12 socket for connection of the BPS 8

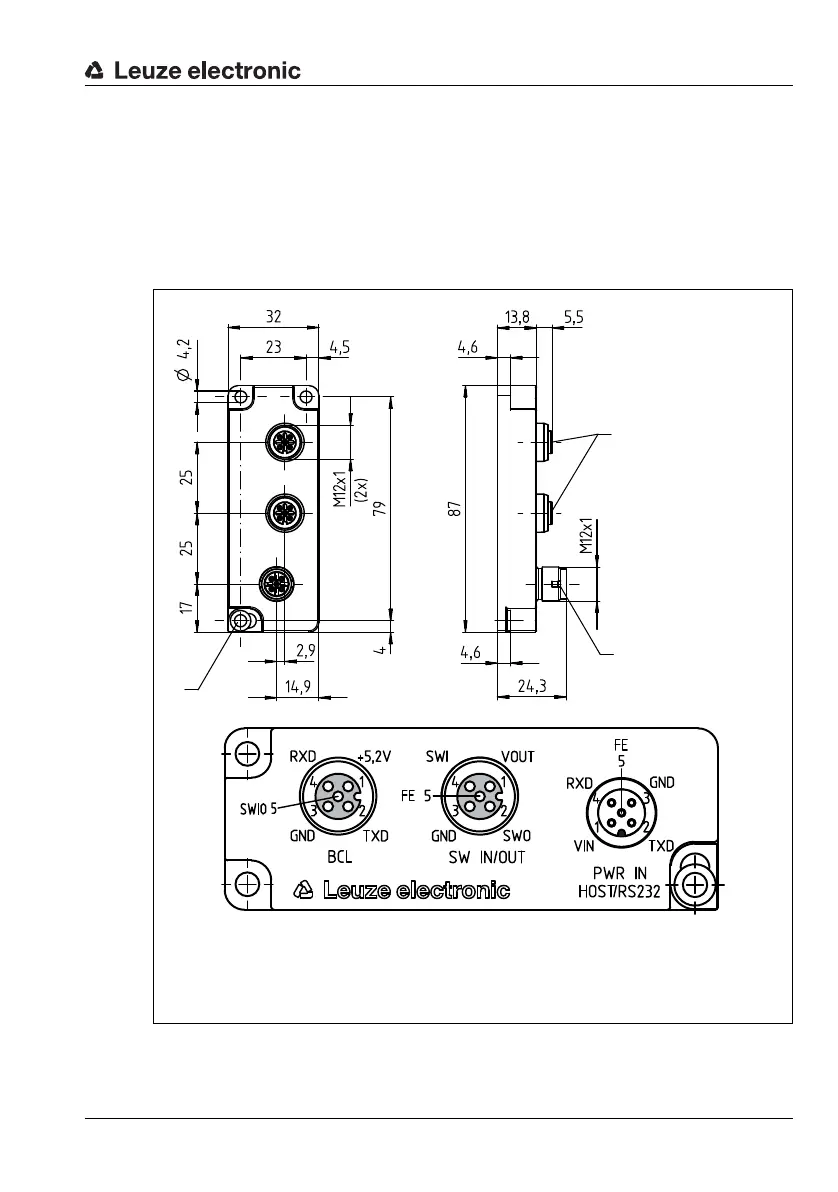

Figure 4.1: Dimensioned drawing and pin assignment of the MA 8.1 connection unit
A M12 socket, 5-pin, A-coded
B M12 connector, 5-pin, A-coded
C FE connection
all dimensions in mm
