6.2.1 BT 8-01 mounting device
The BT 8-01 mounting device is available for mounting the BPS 8 using the 2 through holes.
It is intended for attachment via two M4 screws. For order guide, please refer to Chapter
12.6 on Page 118.

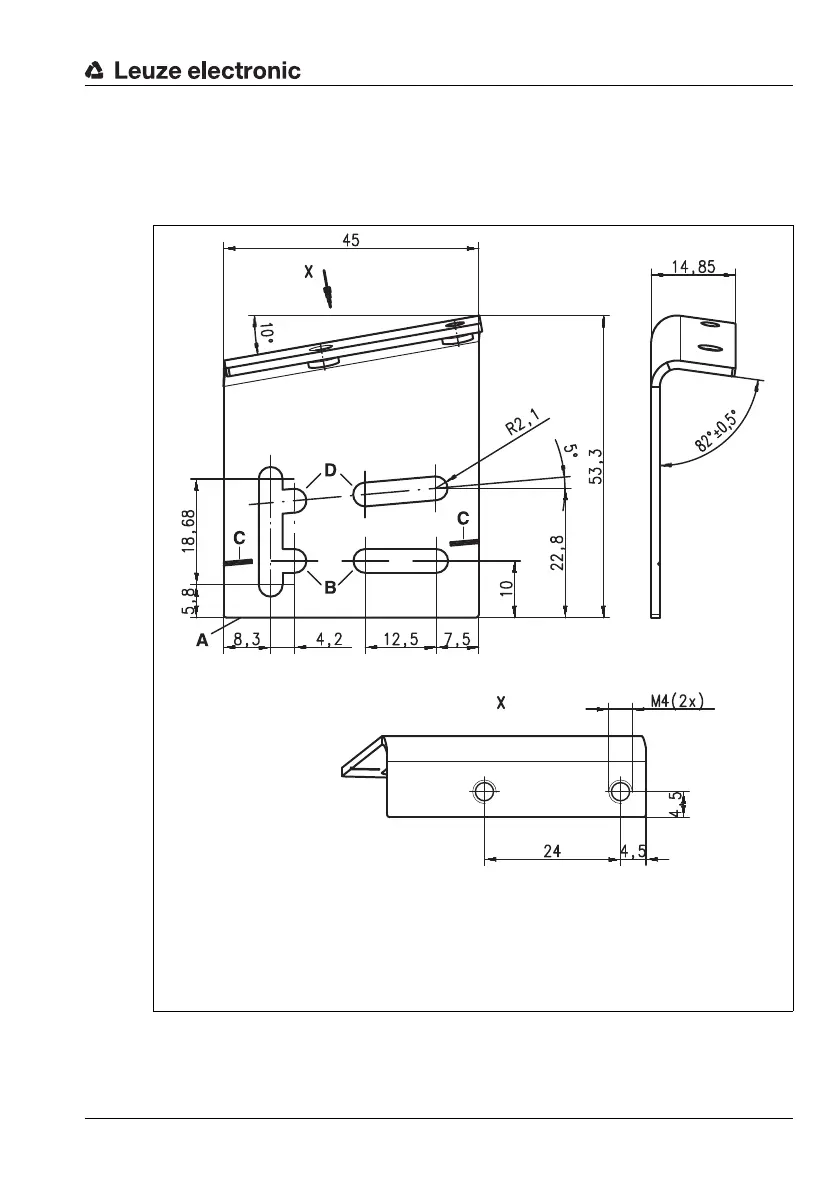

Figure 6.9: BT 8-01 mounting device
A Reference plane for a BCB height of 47mm
B Fastening holes for a BCB height of 47mm
C Reference plane for a BCB height of 30mm and 25mm
D Fastening holes for a BCB height of 30mm and 25mm
