7.3 Electrical connection via connection unit MA 8.1
7.3.1 Electrical connection MA 8.1

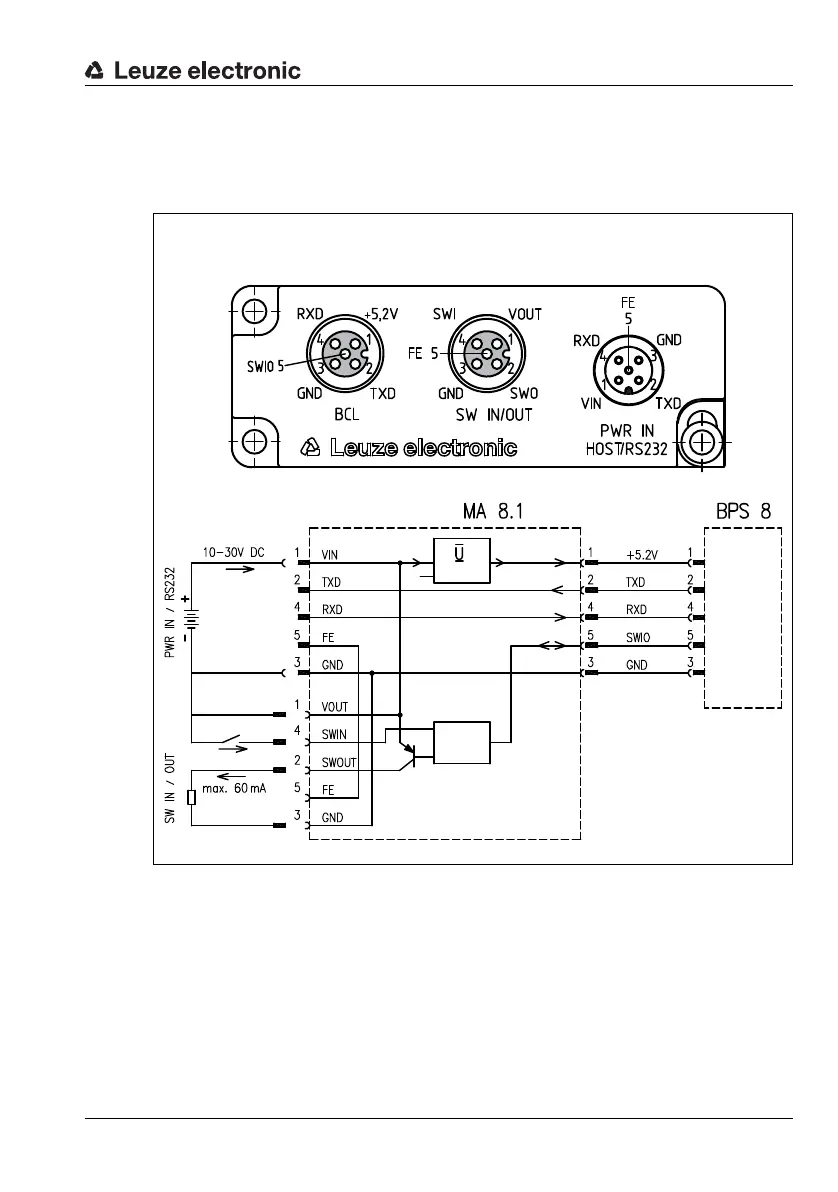

Figure 7.2: Electrical connection MA 8.1
M12 socket
(A-coded)
M12 socket
(A-coded)
M12 con-
nector
Switching input
Switching out-
