8.5.3 Communication

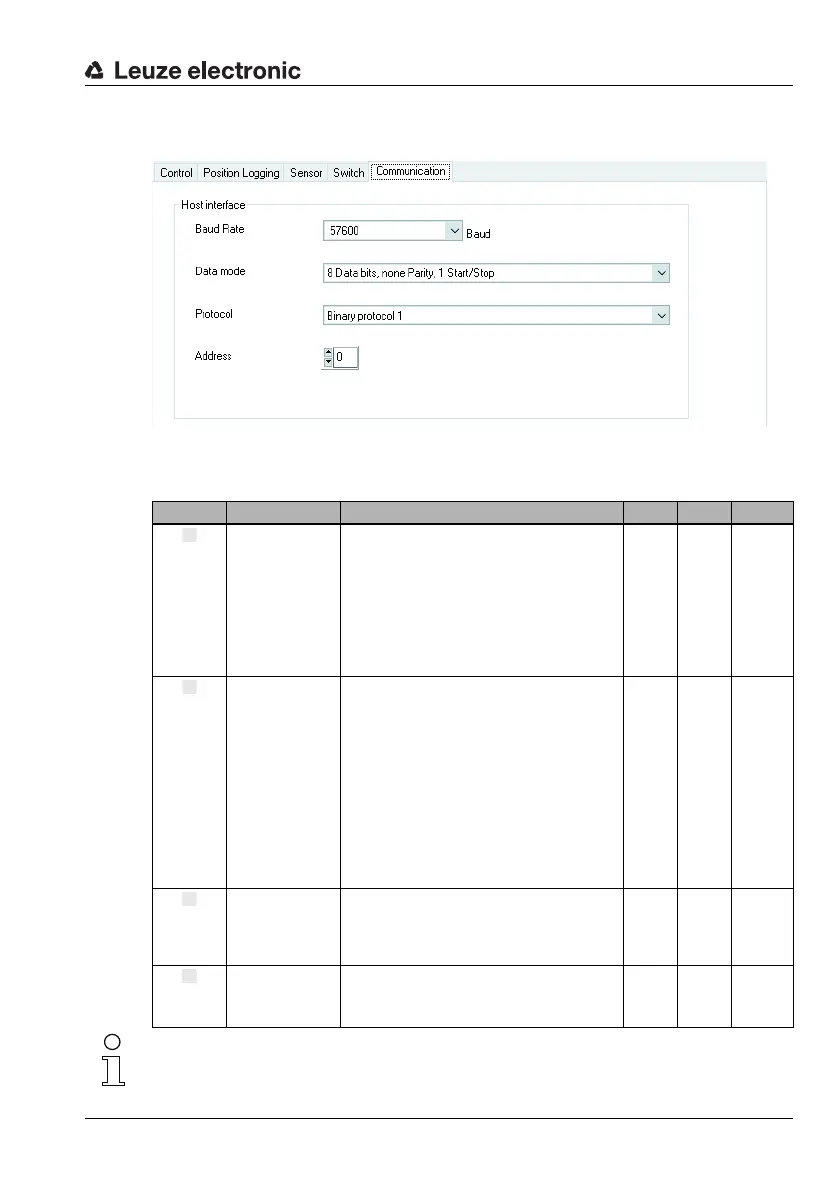

Figure 8.8: Communication tab
Parameters
The 5 different binary protocols are described in a separate chapter (see chapter 9 "Proto-
cols for position value output").
Parameter Description Value range Default Unit CR
Baud rate
Setting the baud
rate.
4: 1200
5: 2400
6: 4800
7: 9600
8: 19200
9: 38400
10: 57600
11: 62500
12: 115200
13: 187500
10 Baud –
Data
mode
Setting of the data
mode.
1: 7 data bits, no parity, 2 stop bits
2: 7 data bits, even parity, 1 stop bit
3: 7 data bits, even parity, 2 stop bits
4: 7 data bits, odd parity, 1 stop bit
5: 7 data bits, odd parity, 2 stop bits
6: 8 data bits, no parity, 1 stop bit
7: 8 data bits, no parity, 2 stop bits
8: 8 data bits, even parity, 1 stop bit
9: 8 data bits, even parity, 2 stop bits
10: 8 data bits, odd parity, 1 stop bit
11: 8 data bits, odd parity, 2 stop bits
12: 8 data bits, no parity, 1 stop bit + WakeUp
bit
13: 9 data bits, no parity, 1 stop bit
6 ––
Protocol
Setting the proto-
col type.
17: Binary protocol 2
18: Binary protocol 3
19: Binary protocol 1
20: Binary protocol 4
23: Binary protocol 6
19 ––
Address
Sets the partici-
pant address for
the RS 485 net-
work.
0: Address 0
1: Address 1
2: Address 2
3: Address 3
0 ––
