Connecting the switching input / switching output
The MA 8.1 is provided with a switching input and a switching output. The connection of
switching input / switching output is carried out in accordance with Figure 7.5.

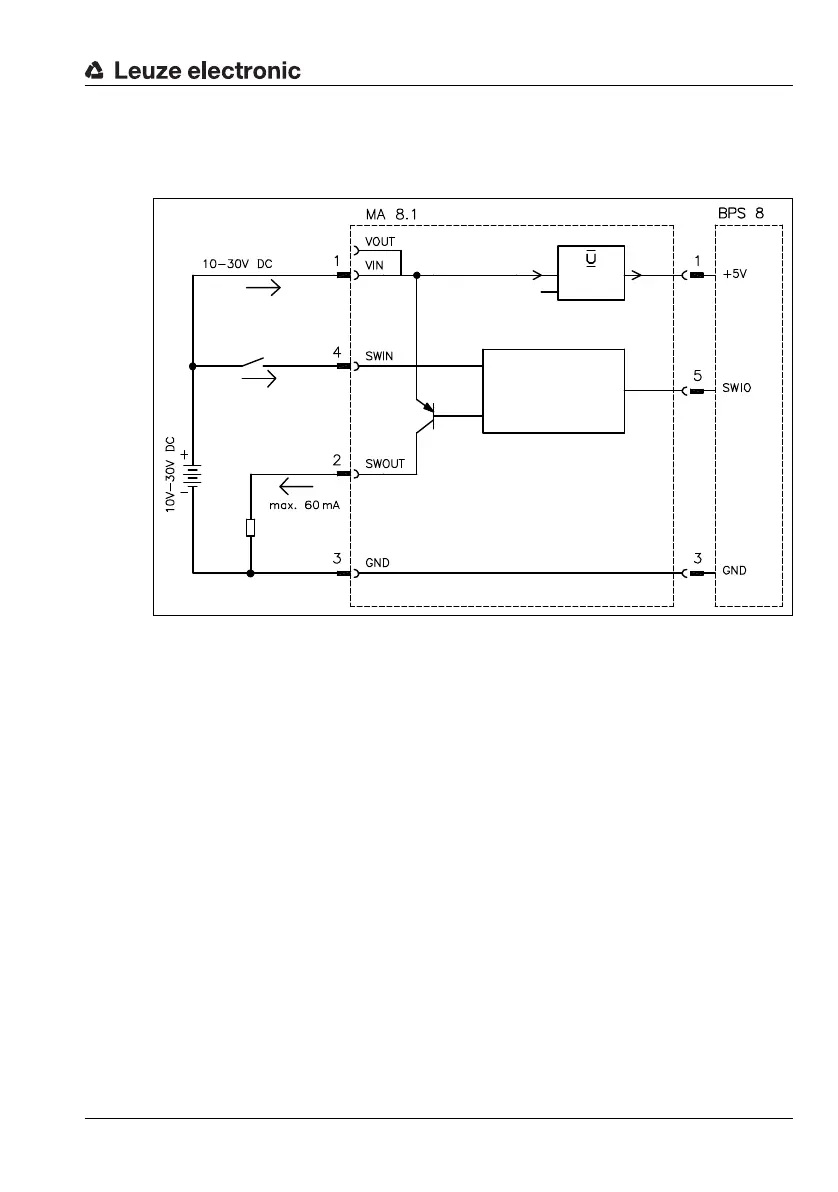

Figure 7.5: Connection of the switching input/output of the MA 8.1
Switching input
Switching output
