Page 7

ZONE

BOTTOM

PLATE

MODEL 2100TS

SYSTEM SENSOR

PLATE

BOTTOM

MODEL 2100TS

SYSTEM SENSOR

MODEL 1503A0011

1K OHM EOL RESISTOR

WHEN Z1-Z4 IS CONFIGURED AS A

SUPERVISED FIRE OR GAS ZONE, THE

CORRESPONDING ZONE JUMPERS J11-J14

MUST BE IN "SMK" POSISTION

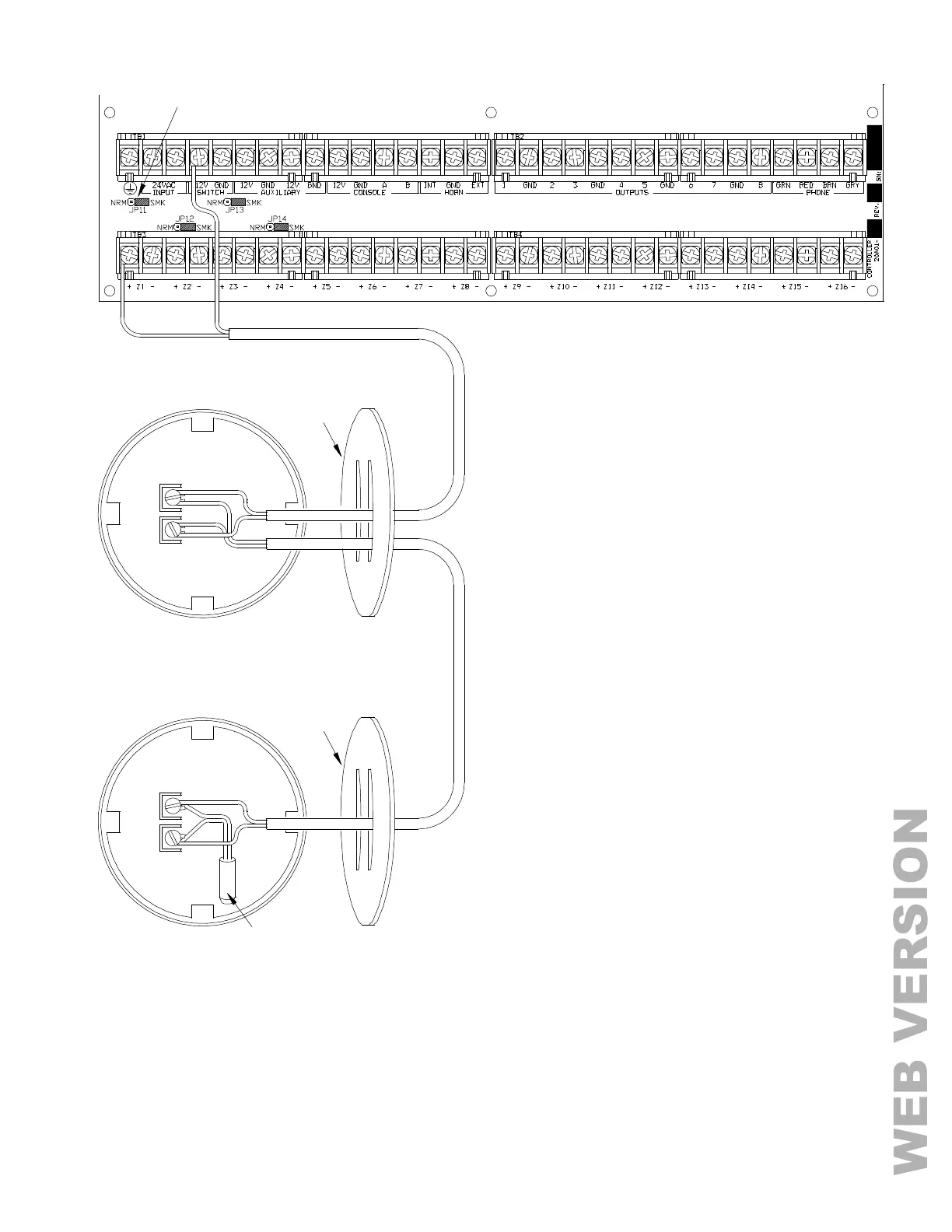

FIGURE 3 - TWO-WIRE FIRE ZONE CONNECTIONS
