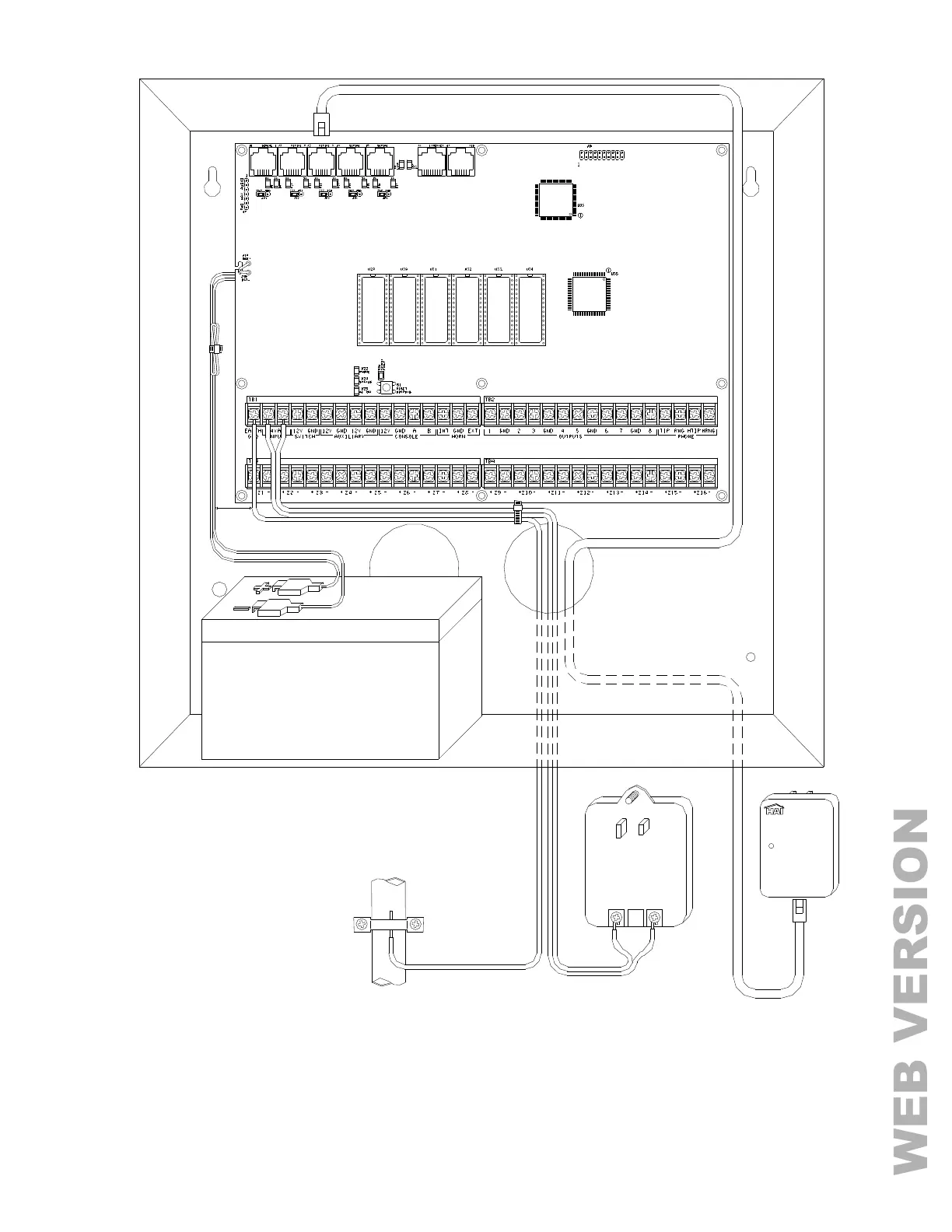

YUASA NP7-12
OR EQUIVALENT
BLACK WIRE TO -
RED WIRE TO +
12V 7AH
BATTERY
ELECTRIC CODE, ANSI/NFPA 70.
ACCORDANCE WITH THE NATIONAL
GOUNDING METHOD MUST BE IN
OR GROUND ROD
COLD WATER PIPE
14 GA. WIRE
OR EQUIVALENT
MODEL RT-2440SL
REVERE
24 VAC 40 VA
POWER TRANSFORMER
WIRING IN THE ENCLOSURE
ALL OTHER POWER LIMITED/CLASS II
MUST BE SEPERATED FROM
LIMITED. THE BATTERY LEADS
THE BATTERY IS NON-POWER
BY AT LEAST 1/4"
SPACING
1/4"
6 CONDUCTOR
Powerline Interface Module
Status
<Program
UPB™
