OMNISTAT THERMOSTATS
Omni LTe supports up to 4 Omnistat Communicating Thermostats. The controller can send commands to the
thermostat to change mode, cool setting, heat setting, status of fan and hold, and other items.

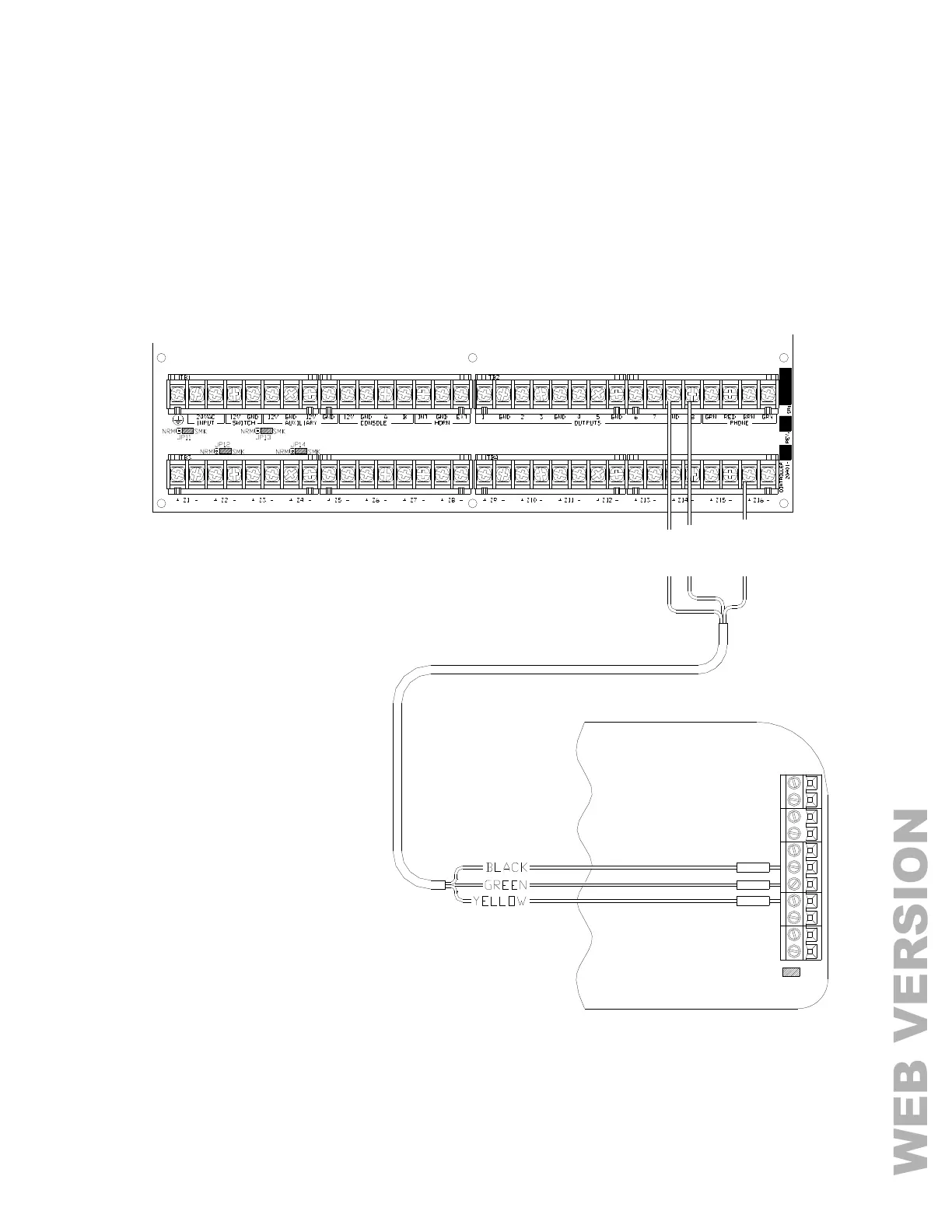

Run a 3 (or 4) conductor wire from Omni LTe to the thermostat location. All thermostats are connected in parallel to
Ground, Zone +16, and Output 8. Make the connections (as shown in Figure 11).
Notes:
1. Thermostats may be connected in home-run or daisy chain configuration.
2. The communications jumper (J8) labeled “COMM JUMPER” on the thermostat circuit board must be in place.
