Page 59

24-HOUR STANDBY BATTERY CAPACITY

Maximum current ratings for 24-hours:

Aux 12VDC, Switch 12VDC, Console, and Outputs 1-8: 250 mA

Interior Horn and Exterior Horn: 350 mA

BLACK WIRE TO -

RED WIRE TO +

12V 7AH

BATTERY

12V 7AH

BLACK

RED

3M, P/N 952

SNAP CONNECTOR

OVER WIRE

12"

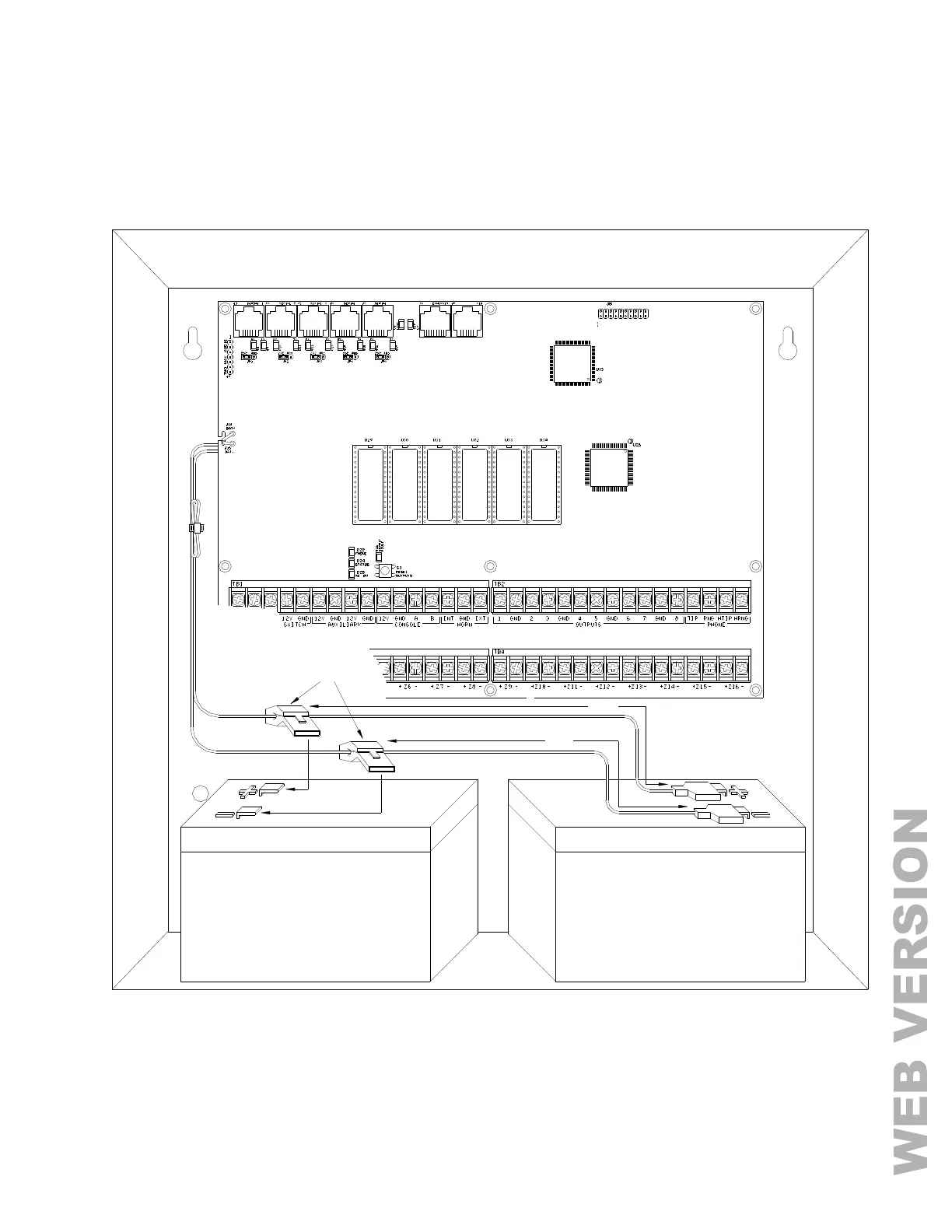

FIGURE 18 - 24-HOUR STANDBY CONNECTIONS
