Note: This task requires a flathead screwdriver.

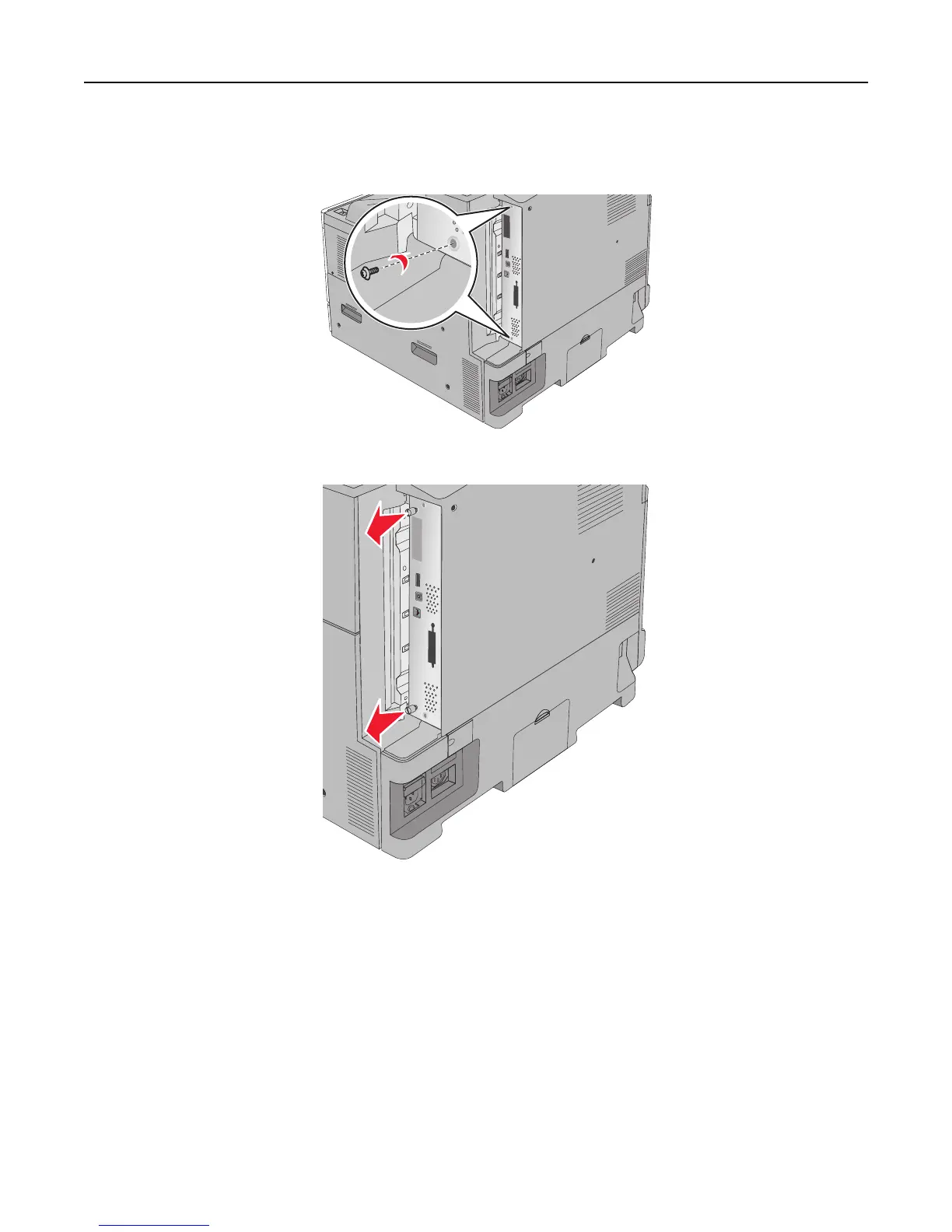

1 Turn the screws counterclockwise to loosen them.
2 Pull the system board forward to remove it.
3 Use the following illustration to locate the appropriate connectors.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or connectors.
