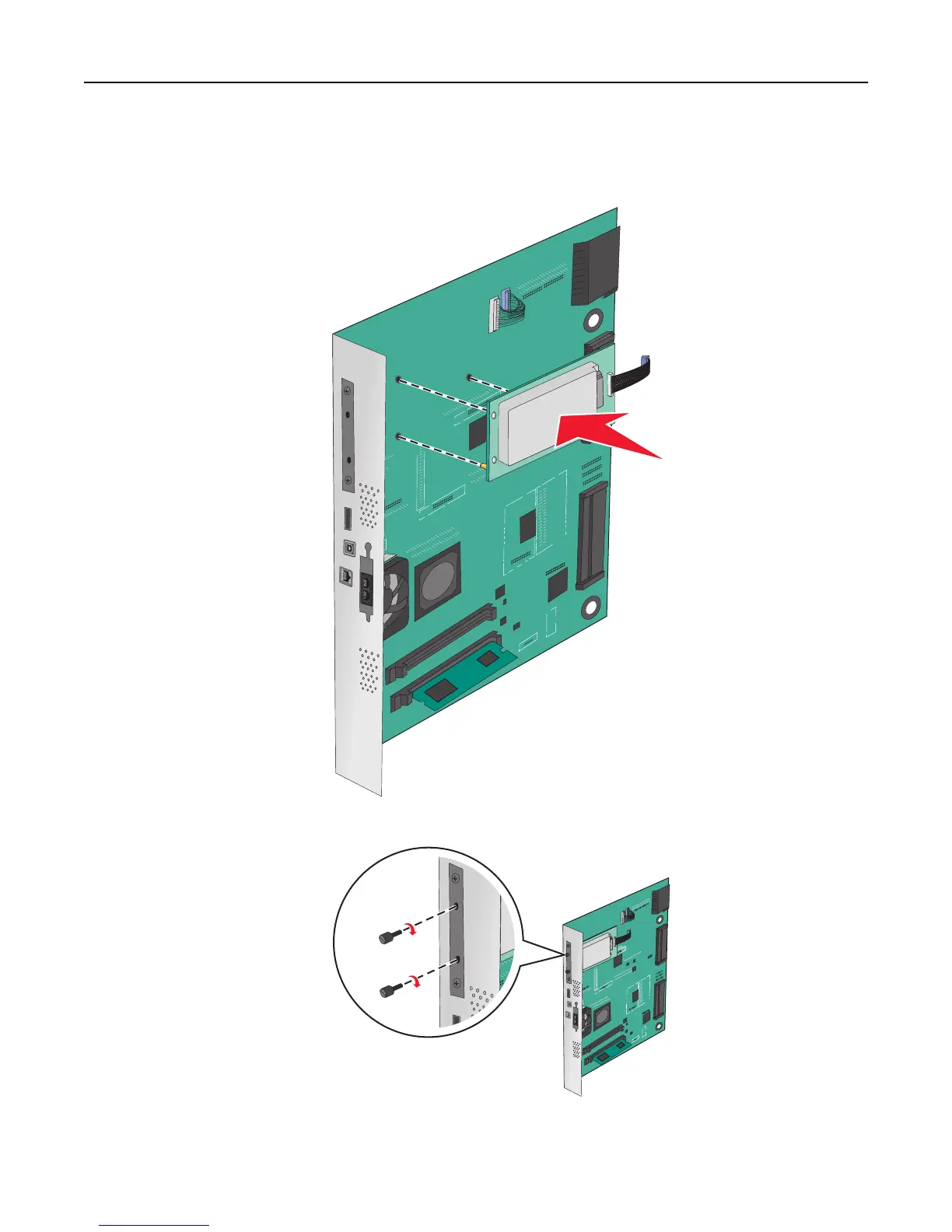

To install a printer hard disk directly on the system board:
a Align the standoffs of the printer hard disk to the holes in the system board, and then press down on the printer
hard disk until the standoffs are in place.
b Use the two provided screws to attach the printer hard disk mounting bracket.
c Insert the plug of the printer hard disk interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color‑coded.
