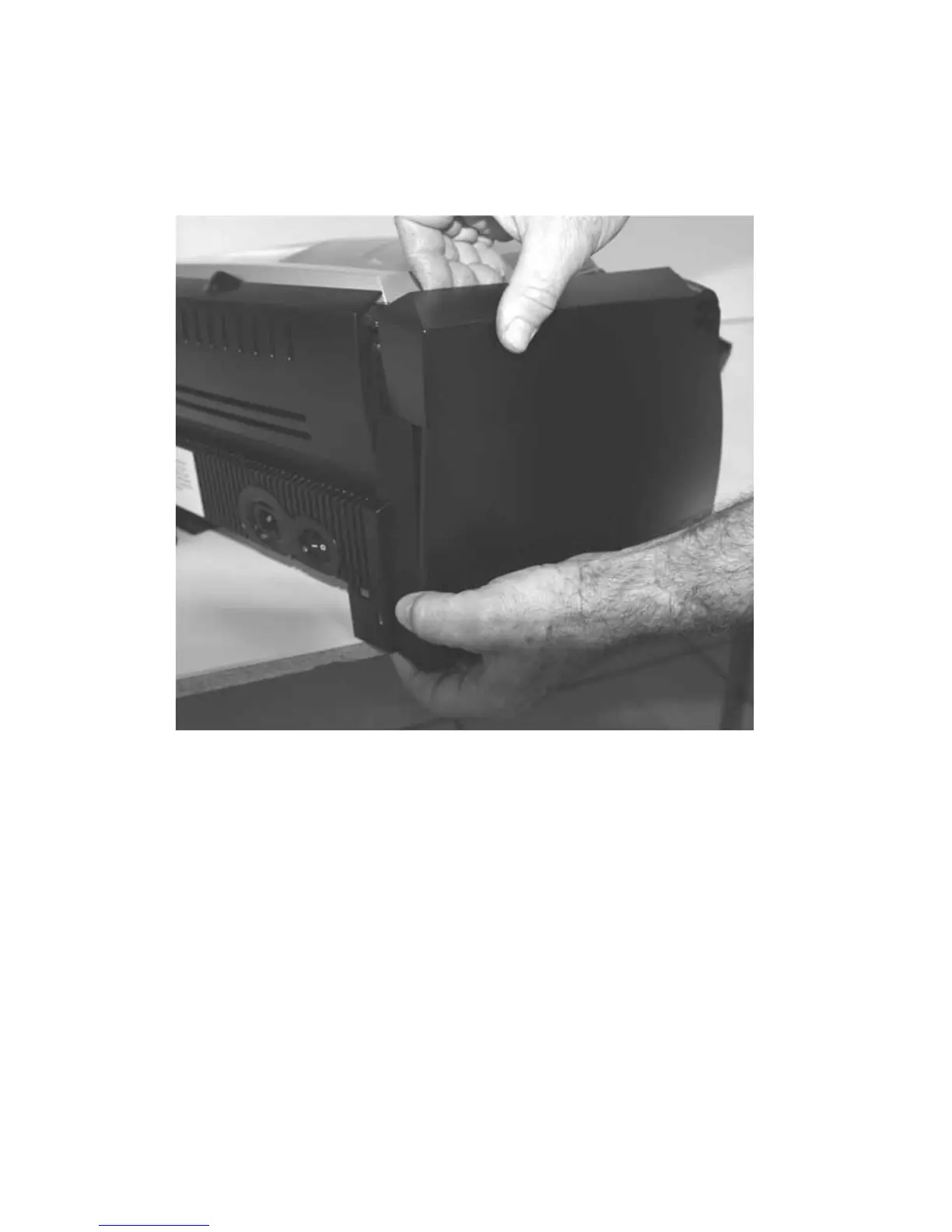

6. To remove the cover, position the printer with the left rear corner
hanging over the edge of the table.
7. Lift the top rear of the cover over the pivot point, and drop the cover
away from the printer.
Rear cover removal
1. Remove the right side cover. See “Right side cover removal” on
page 4-12 for more information.
2. Remove the left side cover. See “Left side cover removal” on
page 4-9 for more information.
