4511-xxx
4-36 Service Manual
Input sensor #2 (manual feed) removal
1. Open the right side cover. See “Right side cover removal” on
page 4-12 for more information.
2. Disconnect the sensor cable at J20 on the controller card.
3. Carefully place the printer on its top, with the front facing you.

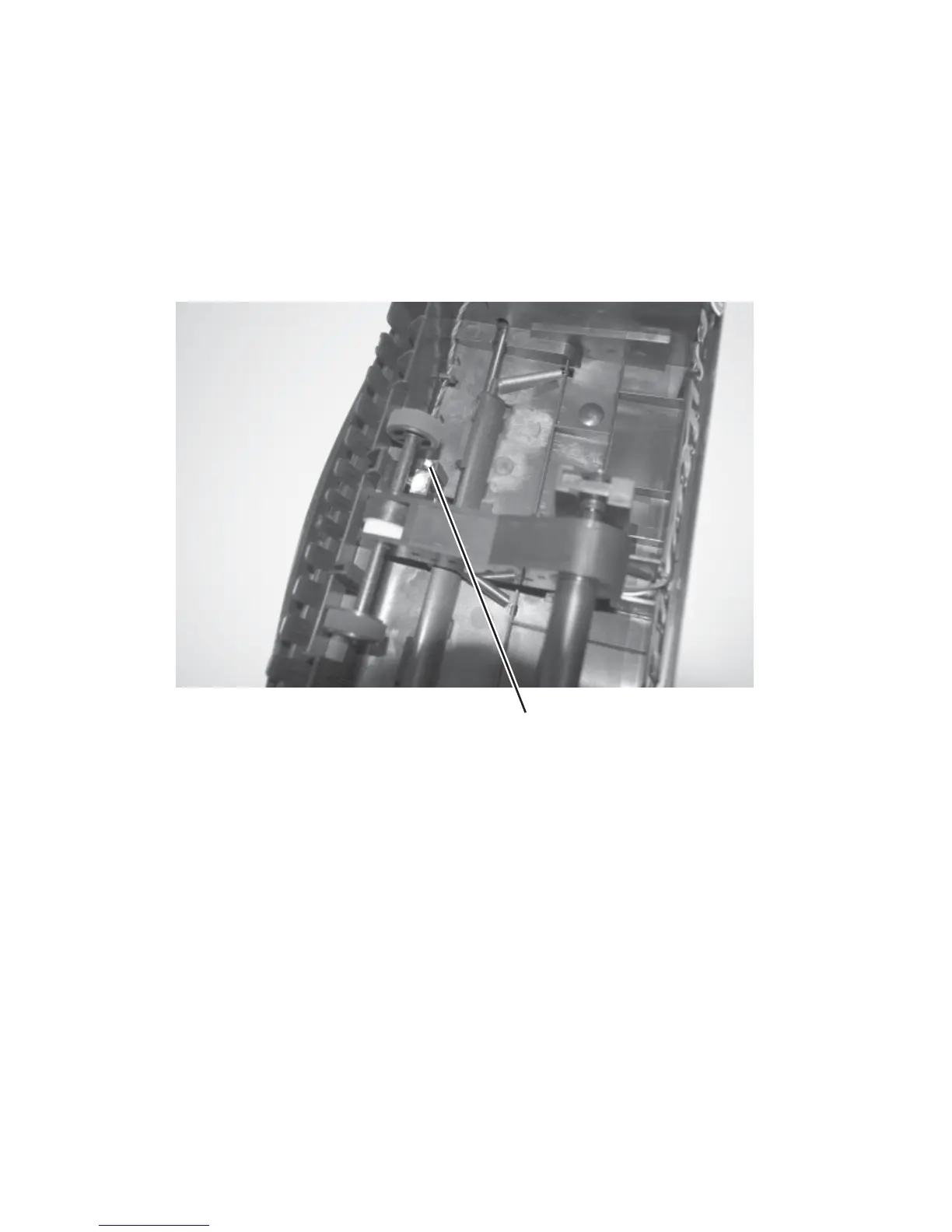

4. Remove the screw (A) beside and under the left pick tire.
5. Remove the sensor assembly.
6. Reinstall the new sensor in the same orientation as the old. The flag
should be spring loaded against the leading edge of an advancing
sheet.
7. Verify the cable is captured and away from the paper path.
A
