4511-xxx
Repair information
4-35
Input sensor #1 removal
1. Open the right side cover.
2. Disconnect the sensor cable at J9 on the controller card (front, near top
of card).
3. Carefully place the printer on its top.

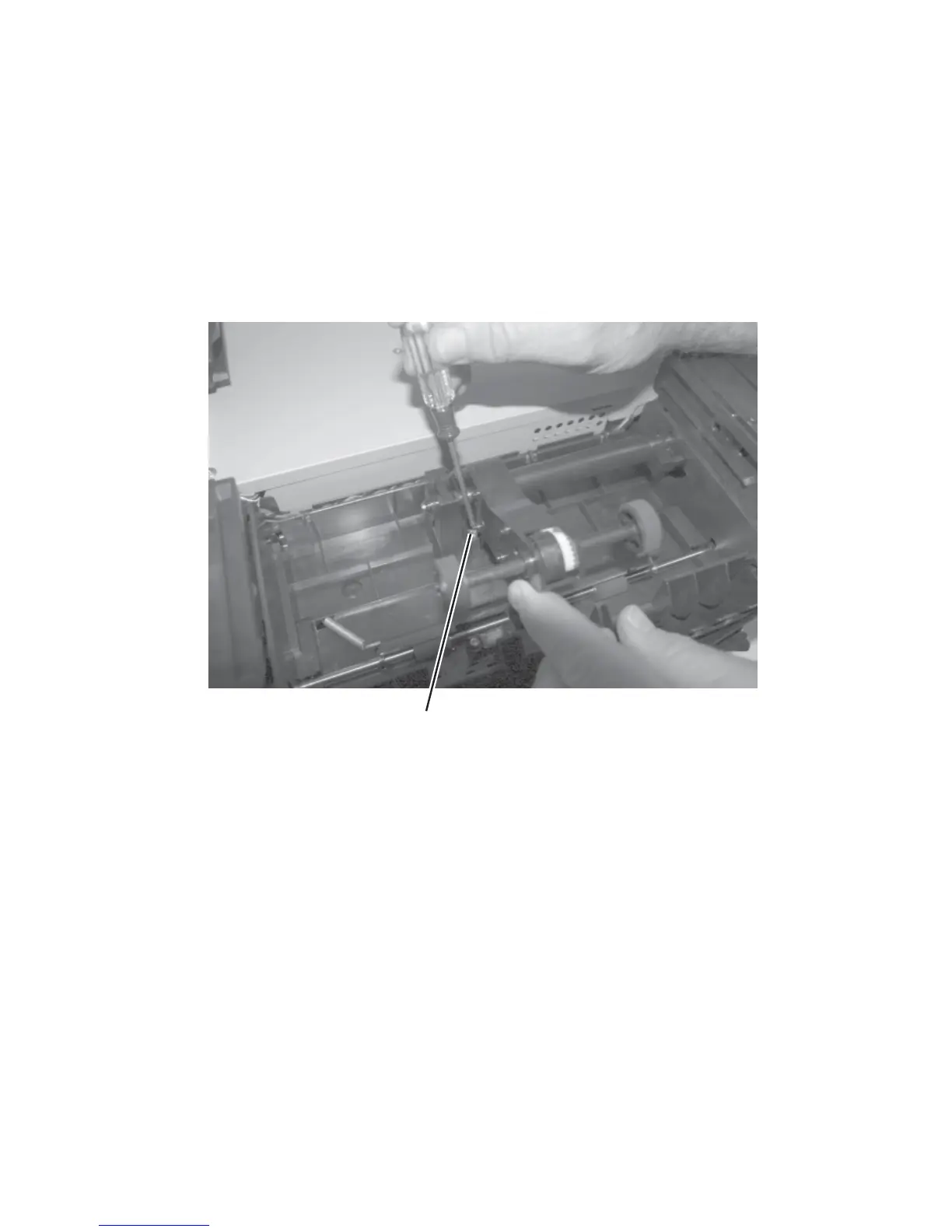

4. Using a small shank screwdriver, remove the screw (A) behind the
ACM (autocompensator) pivot which holds the paper sensor in place.
5. Remove the sensor assembly.
6. Reinstall the sensor so that the flag is spring loaded against the page
as it advances in its path.
7. Verify the cable is captured and out of the paper path.
A
