Toner level sensor cable removal (E340 and E342n)
1. Open the right side cover. See “Right side cover removal” on
page 4-12 for more information.
2. Unplug the sensor at J11, and extract the cable.
3. Unplug the cable from the sensor.
Toner level sensor removal (E340 and E342n)
1. Open the right side cover. See “Right side cover removal” on
page 4-12 for more information.

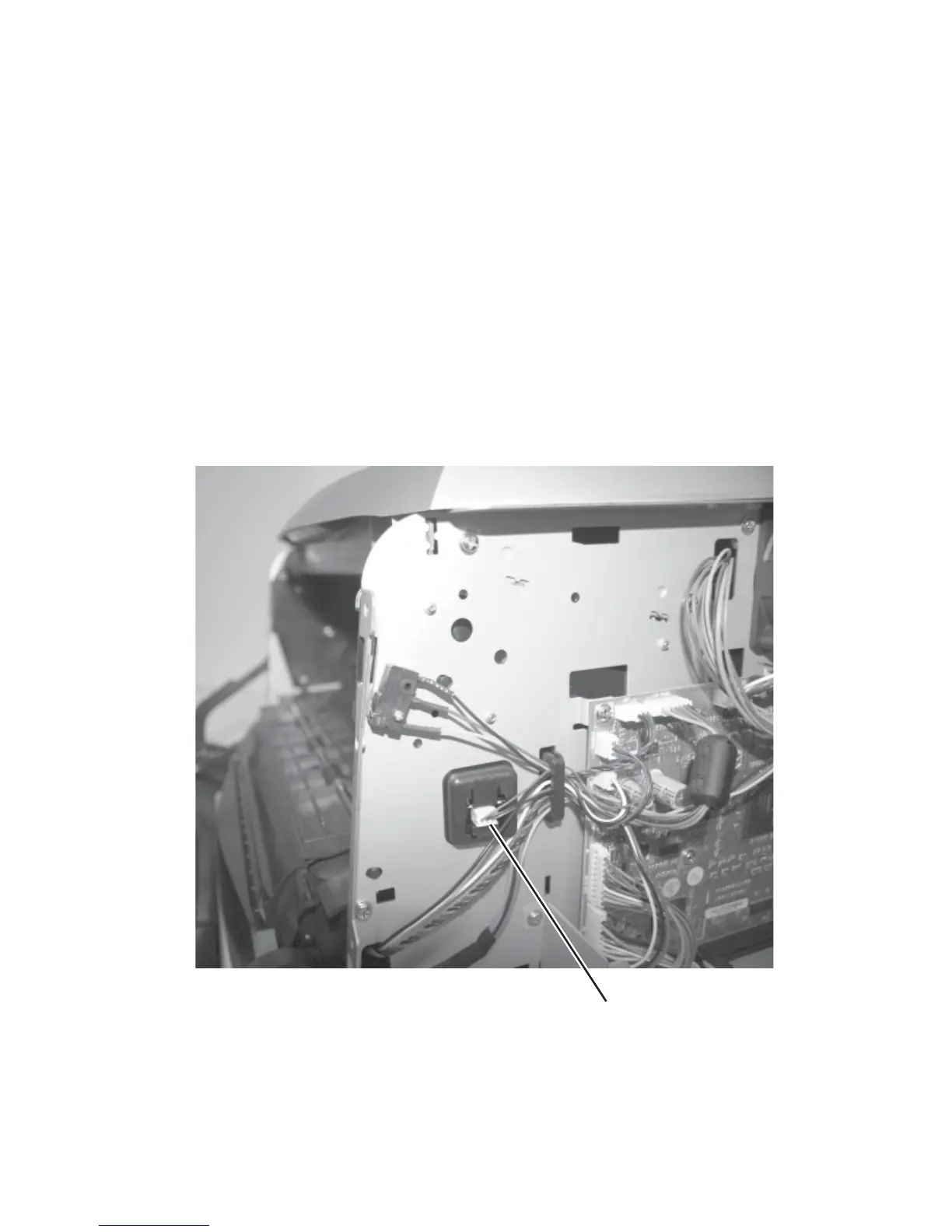

2. Unplug the cable (A) from the sensor.
3. Unsnap the toner level sensor from the frame, and remove it through
the inside of the printer.
