4511-xxx
4-46 Service Manual
Paper exit guide assembly removal
1. Remove the rear cover. See “Rear cover removal” on page 4-10 for
more information.

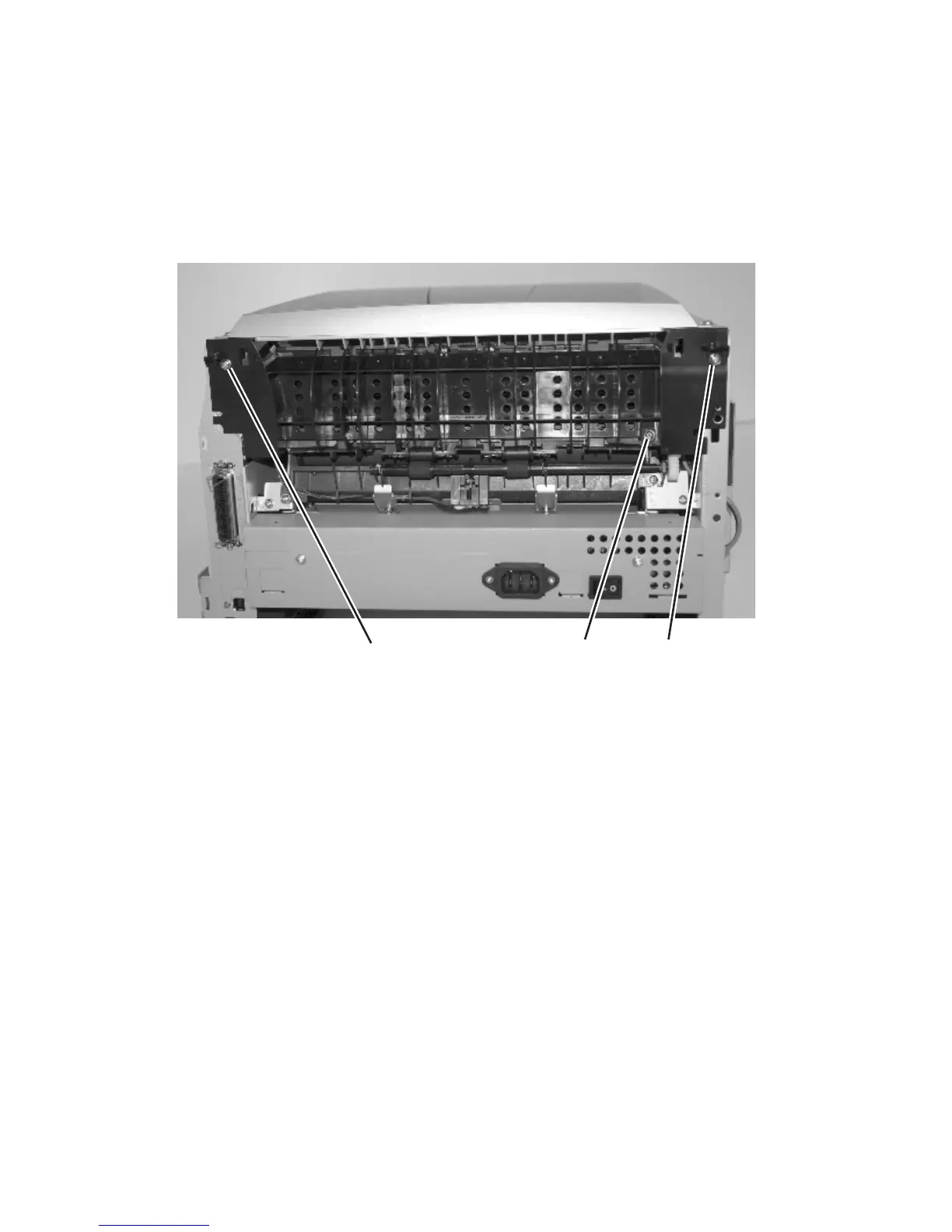

2. Remove the two screws (A) and the longer screw (B) holding the exit
guide.
3. Remove the paper exit guide assembly.
Reinstallation note: It may be necessary to rotate the gears to mesh with
the fuser and drive gear.
AAB
