4511-xxx
Repair information
4-39

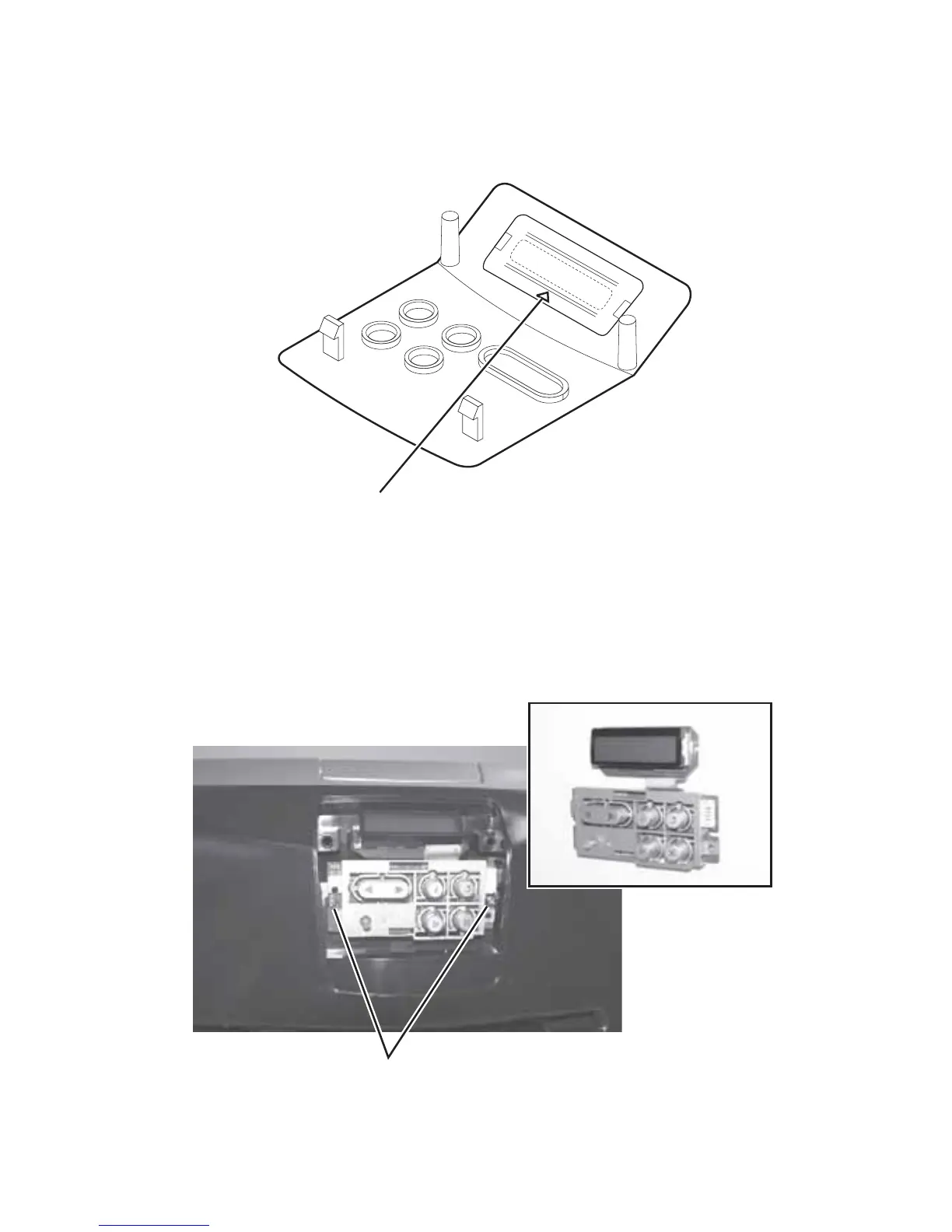

Installation note: The clear lens has a molded-in triangle (C). Install the
lens so the triangle is positioned toward the LCD buttons. Be sure the lens is
free of debris and fingerprints before installing.
LCD operator panel removal
1. Remove the LCD bezel. See “LCD bezel removal” on page 4-37.
2. Remove the two screws (A) holding the LCD assembly to the front
access cover.
3. Unlatch the LCD display (left and right side of the LCD).
4. Carefully pull the LCD assembly away from the front access cover.
5. Disconnect the LCD cable.
C
A
